KINUGAWA

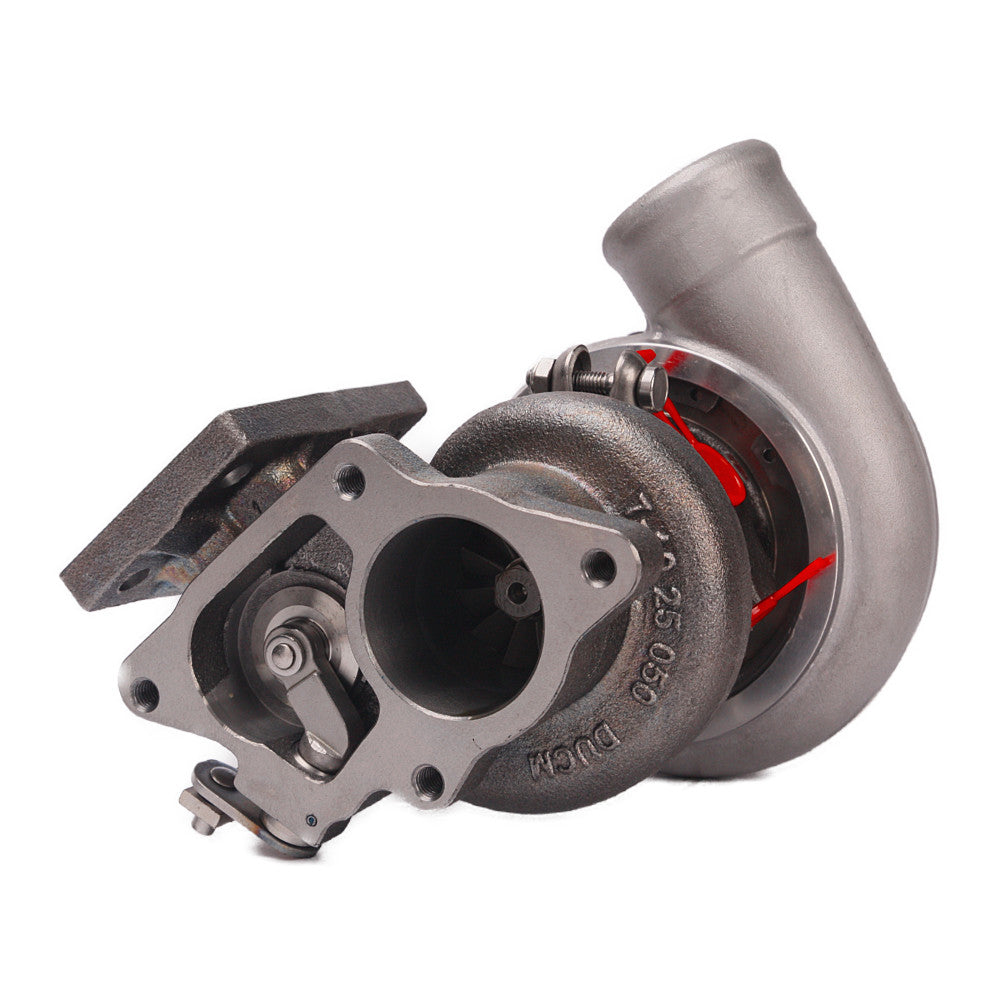

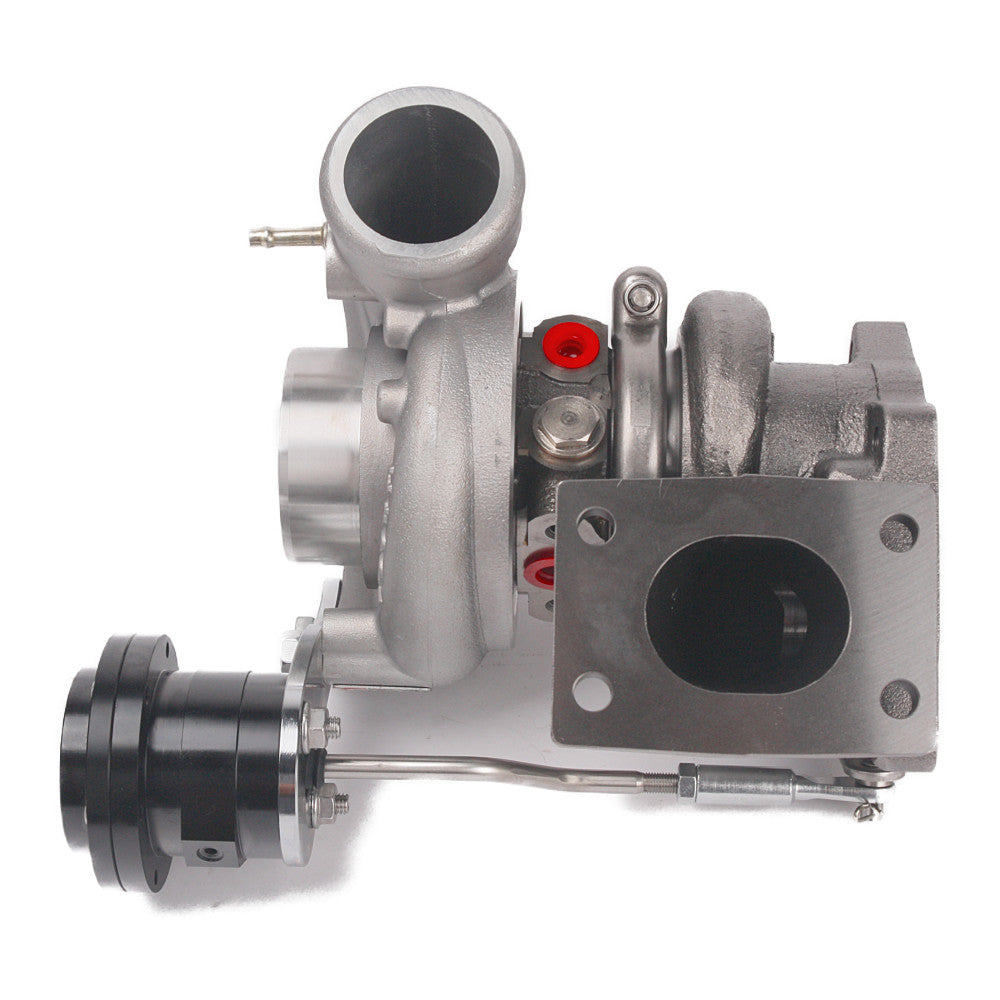

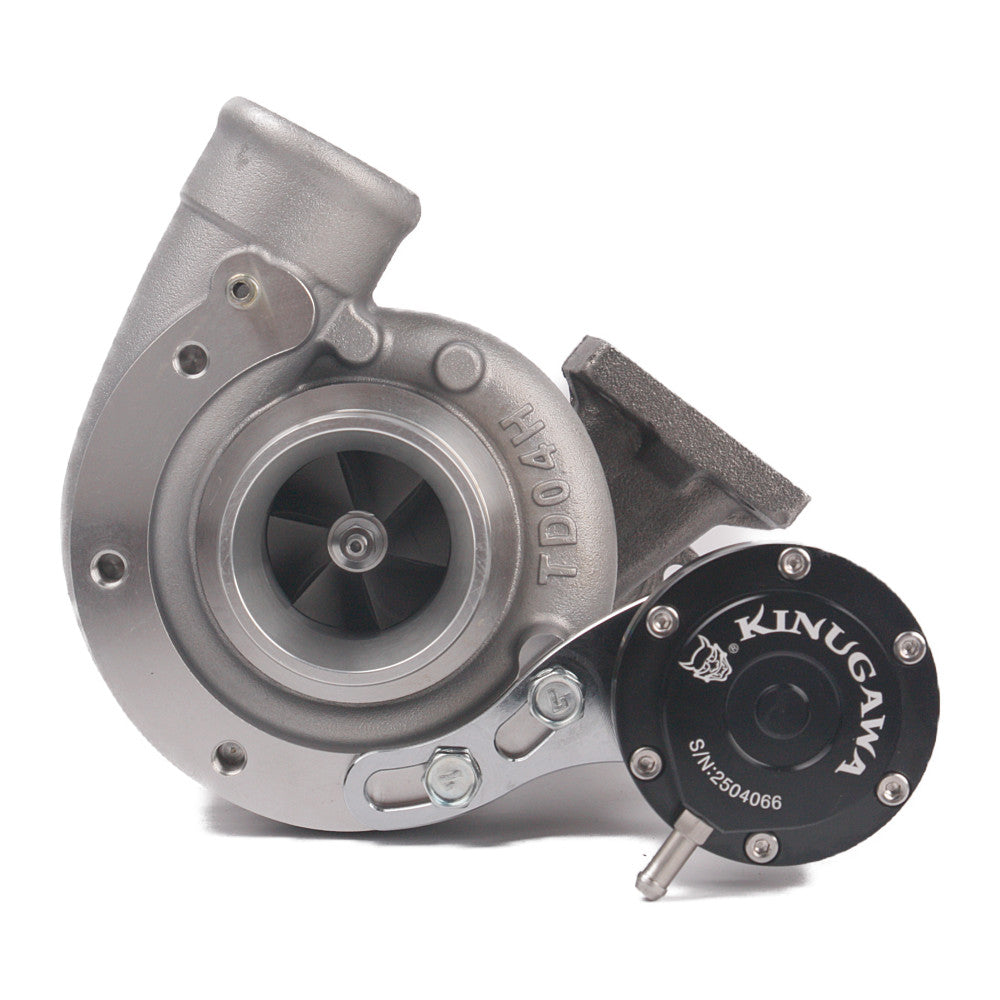

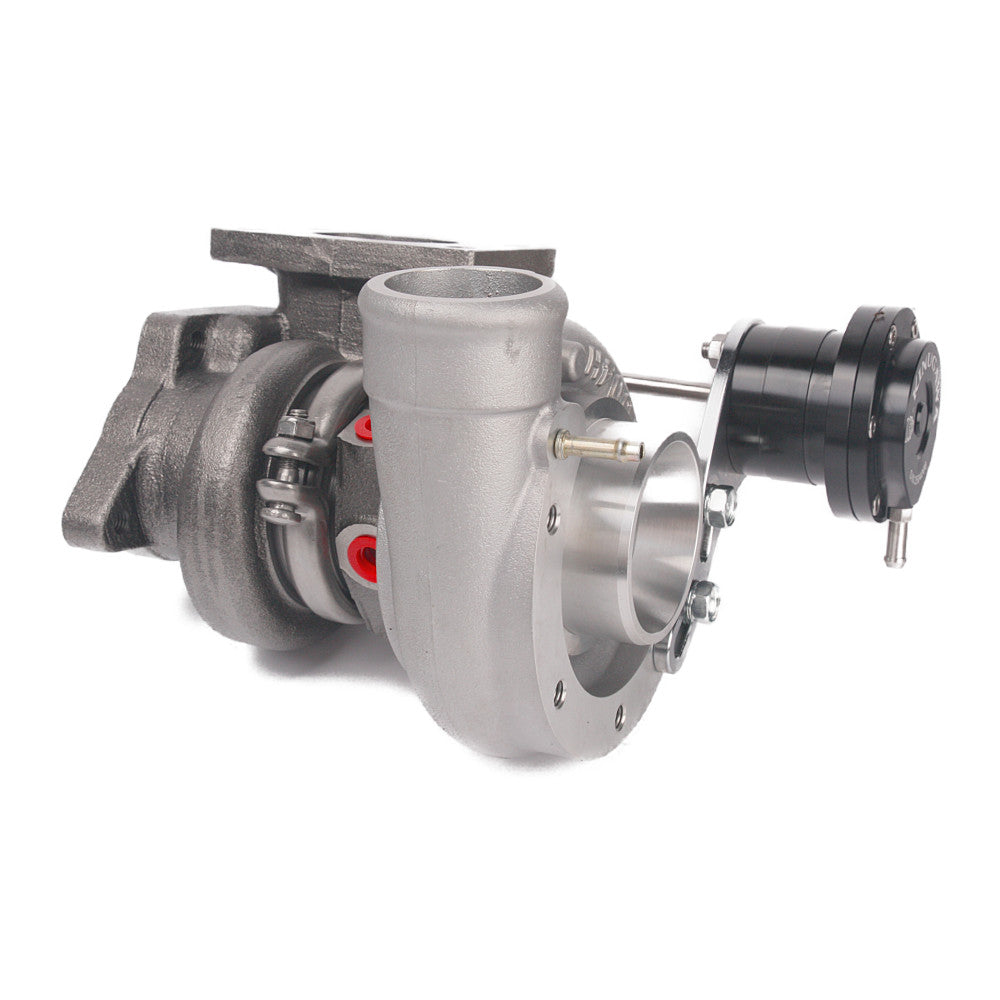

Kinugawa Turbo 2.4" TD04L 13T 15T 5cm T25 4-Bolt Internal Fits TOYOTA DTS Hilux Convert Kit
      Regular price

        $1,268.37 AUD



        Regular price



              $1,395.21 AUD


        Sale price

        $1,268.37 AUD



      Unit price



         per




  Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
APPLICATION
- 1.5~2L petrol engine
- 2.5~4L diesel engine
- Fits DTS Toyota Hilux turbo kit 3L 5L 5LE Code: 300 DTS, 500 DTS, 500E DTS
- 230-280HP (13T 40.7/56 mm Trim 53) for Gasoline
- 250-320HP (15T 42/56 mm Trim 56) for Gasoline
- 2.5~4L diesel engine
- Fits DTS Toyota Hilux turbo kit 3L 5L 5LE Code: 300 DTS, 500 DTS, 500E DTS
- 230-280HP (13T 40.7/56 mm Trim 53) for Gasoline
- 250-320HP (15T 42/56 mm Trim 56) for Gasoline
Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), representing the potential flywheel power. This product's Performance results depend highly on your vehicle’s modifications and tuning/calibration.
WHEEL SPEC
- Compressor Wheel: 13T (40.3/56 mm), 15T (42/56mm)
 (The 6+6 blade is better for low-end torque; the 11+0 blade is for top-end speed)
- Turbine Wheel: 41.3 / 47 mm
 (2 types available: STD, STS. Click here to learn more about STS technology.↗)

COMPRESSOR HOUSING
- Inlet: 2.4"Â
- outlet: 2"
TURBINE HOUSING
- Nozzle Area: 5 cm^2 / AR.33
- Inlet: T25
- Outlet: TOYOTA Hilux type 4 bolt
- Wastegate: Internal gated
BEARING TYPE
- Journal Bearing
COOLING TYPE
- Oil and water-cooled
ACTUATOR PRESSURE
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.

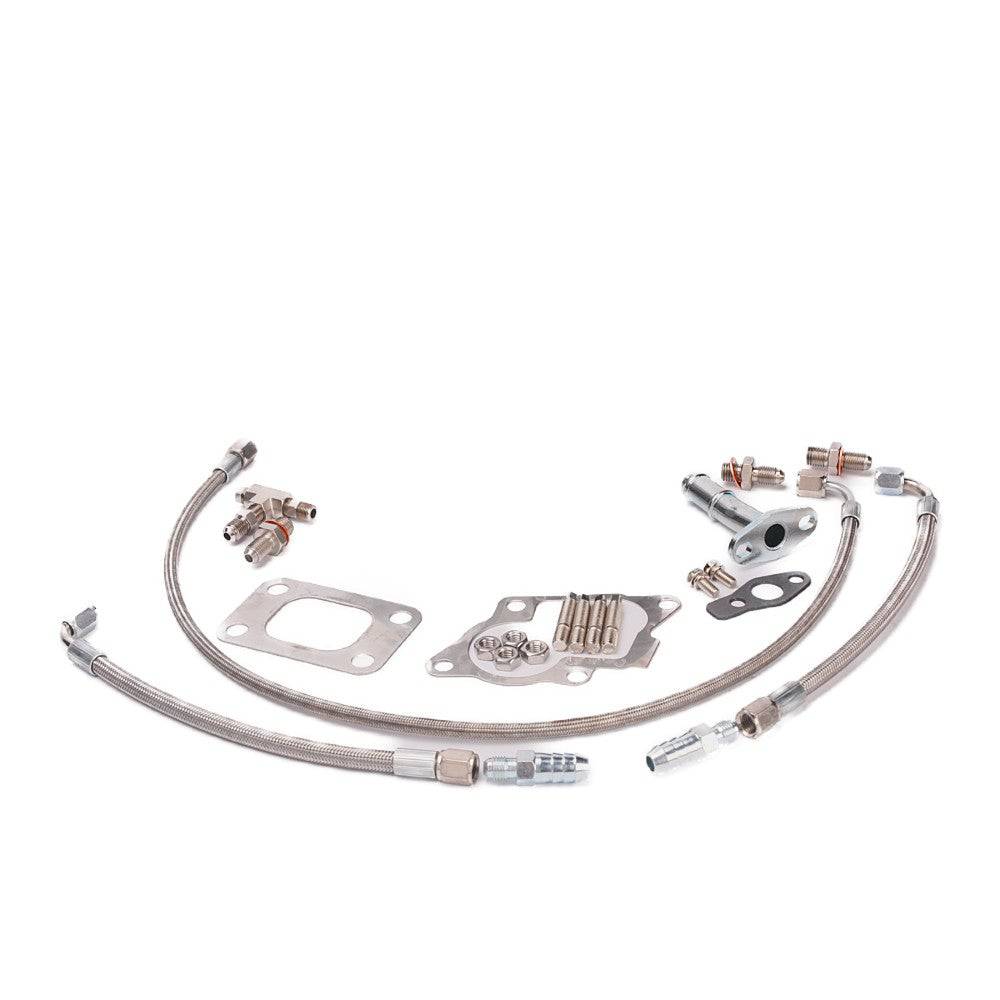

THE SET INCLUDES
- 1 x Turbocharger
- 1 x Oil feed line kit
- 1 x Water coolant feed and return line kit
- 1 x Turbine inlet and outlet gasket set
- 1 x Oil return pipe kit
- 4 x Stud and nut set
- 1 x Tee fitting
- 1 x Balance report with anti-counterfeit tag↗
PRODUCT SITUATION
- Brand New
PROVIDER
- Kinugawa Turbo Systems
WARRANTY
- One Year
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
