KINUGAWA
Kinugawa Turbo 3" Anti-Surge TD05H-16G 3-Bolt for Nissan Patrol TD42 Low Mount Water-Cooled
Regular price
$1,409.00 AUD
Regular price
Sale price
$1,409.00 AUD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Application
- Fits Nissan TD42 Patrol Safari GR GQ Y60, GU Y61 TD42T engine
- Fits DTS Turbo Kit Suits Nissan Patrol GQ, GU TD42 4.2L(Product Code: NIS DTS)
- Fits for Radius Fabrications TD42 Low Mount Turbo Manifold
- Fits Radius Fabrications TD05 3" Low Mount P4x4 / Arashi 3 Bolt Dump Pipe.
These are configured to fit the factory low-mount turbo manifold.
Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. This product's performance results are highly dependent upon your vehicle’s modifications and tuning/calibration.
CHRA Size
- TD05H-16G
Wheels Spec
- Compactor wheel: 48.3 / 68.0 mm (The 6+6 blades are better for low-end torque, and the 11+0 type is for top-end speed)
- Turbine wheel: 56.0 / 49.2 mm (3 types offered: STD, STS, STS55.)

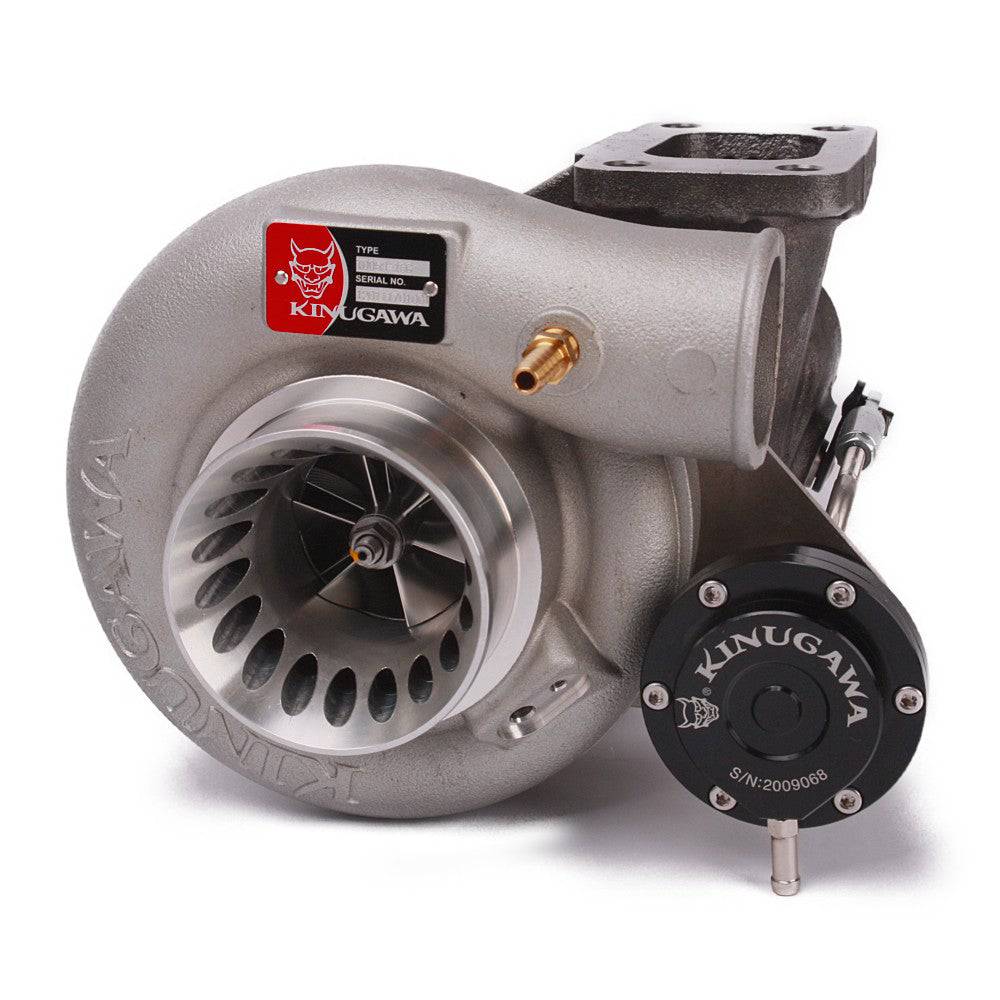

Compressor Housing
- Nozzle area: AR.60
- Inlet: 3" anti-surge
- Outlet: 2"

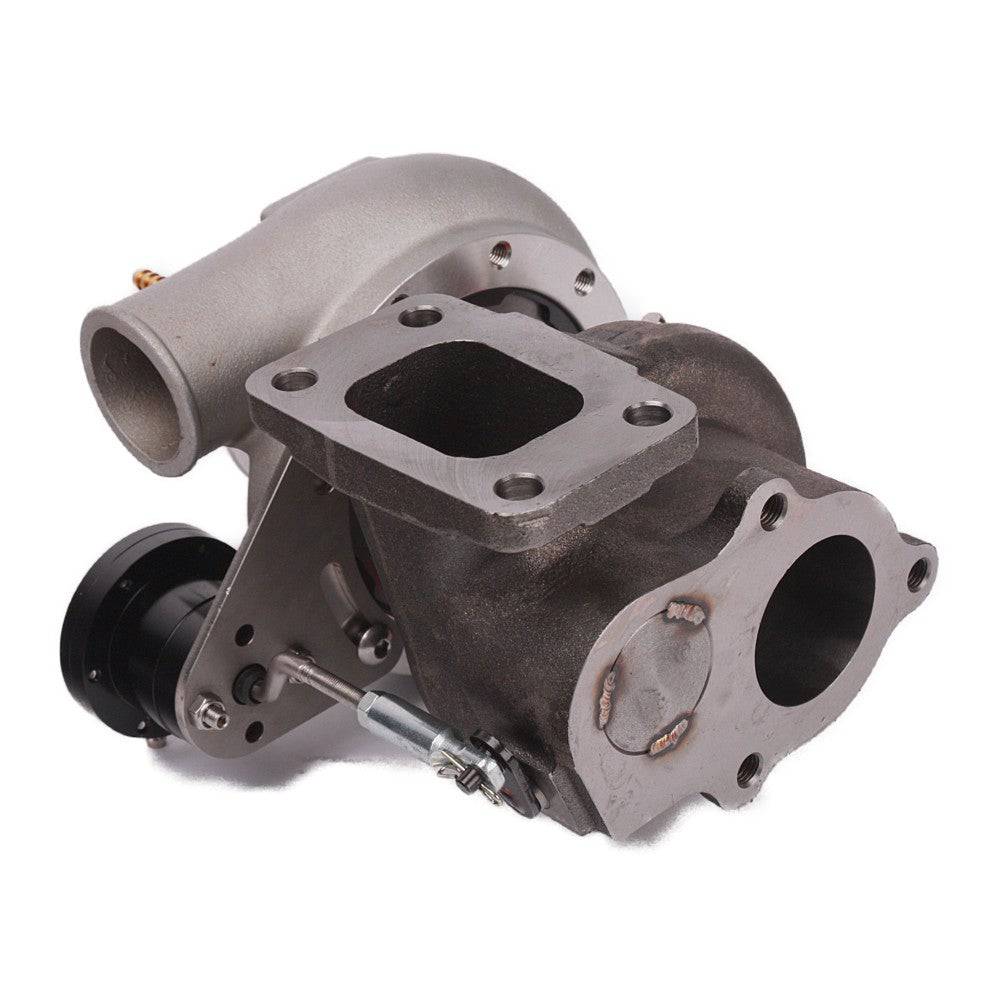

Turbine Housing
- Nozzle area: AR.60
- Inlet: 3" anti-surge
- Outlet: 2"
Turbine Housing
- Nozzle area: 6cm (A/R .41) or 8cm (A/R .57)
- Inlet: T3
- Outlet: 3-Bolt DTS type with 3" V-band adapter
- Wastegate: internal gated
- Inlet: T3
- Outlet: 3-Bolt DTS type with 3" V-band adapter
- Wastegate: internal gated
Comparison of 6cm and 8cm Housings
| Feature | 6cm (A/R .41) | 8cm (A/R .57) |
| Best For | Daily driving, stop-start traffic, light towing | Heavy towing, high-speed highway cruising, high-HP builds |
| Spool Time | Fast. Provides quick boost at lower RPM for better torque | Slower. Requires more exhaust volume to build boost |
| High-End Flow | Becomes a restriction at higher RPM; can lead to higher EGTs | High. Reduces backpressure and allows the engine to breathe better at top end |
| Backpressure | Higher at high RPM/high load | Lower, which helps reduce thermal stress on the engine |
Bearing Type
- Journal bearing system with 360-degree thrust bearing kit
Cooling Type
- Oil and water cooling
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
The set includes
- 1 x Oil supply set
- 1 x Water feed and return set
- 1 x T3 gasket

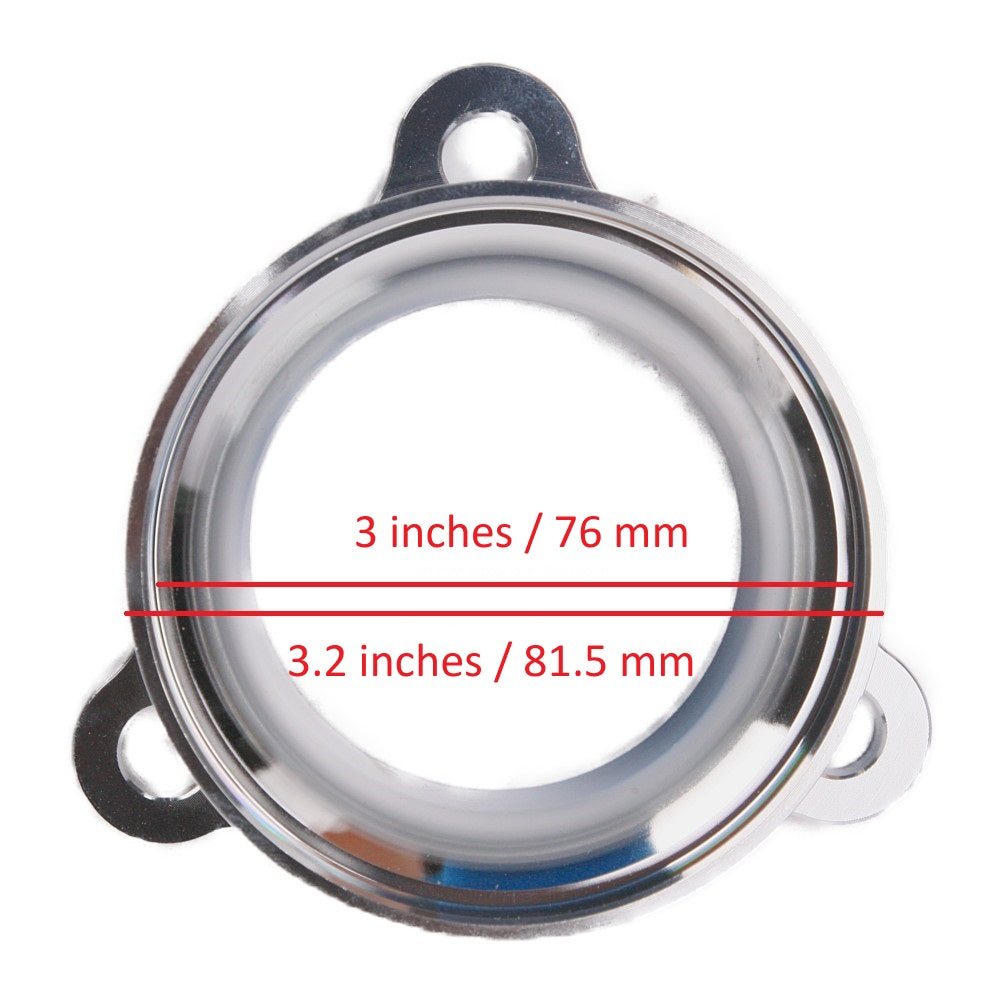

- 1 x 3" V-Band Socket Adapter Kit
- 1 x Turbocharger
- 1 x Kinugawa Balance Report with an Anti-counterfeit Tag
GR GQ Y60 Install Kit Instruction
GU Y61 Install Kit Instruction
Situation
- Brand New
- Full balance from Schenk MBRS110 Germany
Provider
- Kinugawa Turbo System
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
Shipping & delivery
Ships direct from Kinugawa Turbo Systems via DHL Express, with import duties and taxes already paid. Each turbo is built and balanced to order (3-5 working days), so allow about 7-9 days for delivery Australia-wide.
Not sure which turbo suits your build, or need a different actuator pressure? Get in touch with the FlexAppeal4x4 team before you order and we'll help you pick the right one.
