KINUGAWA

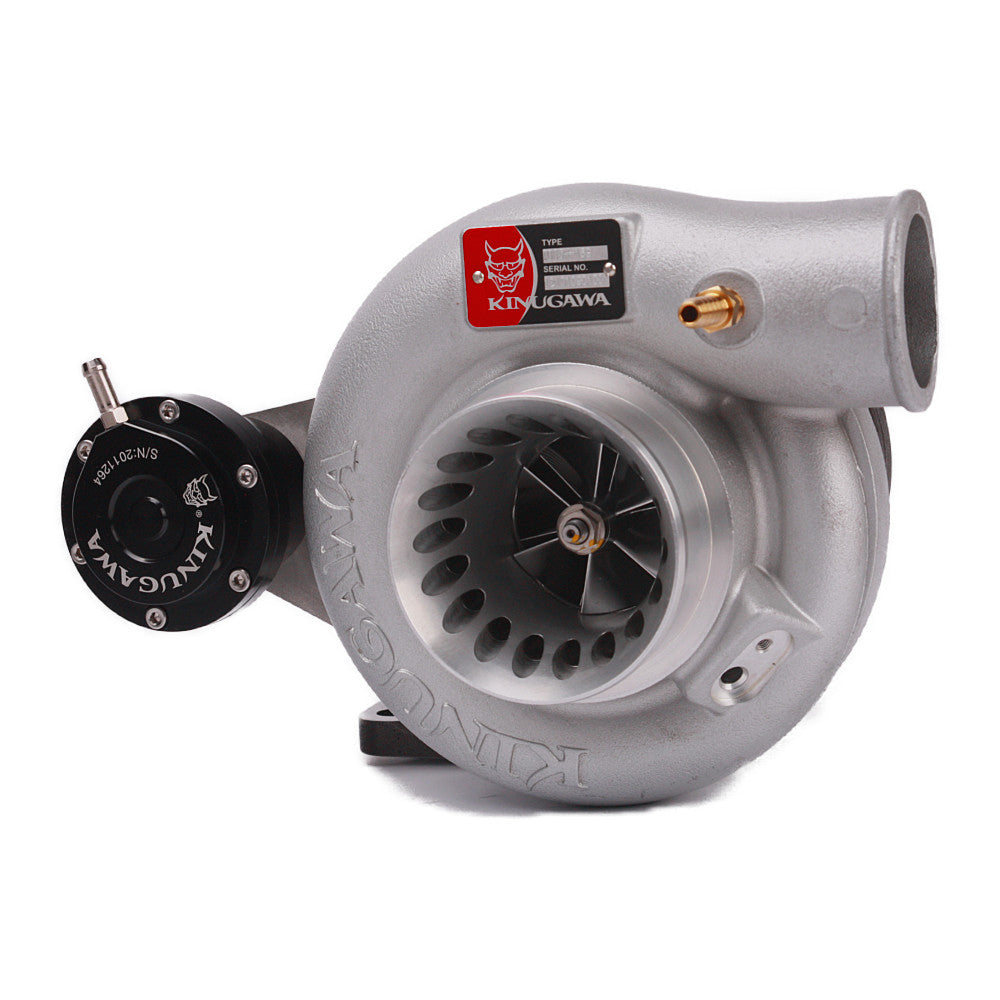

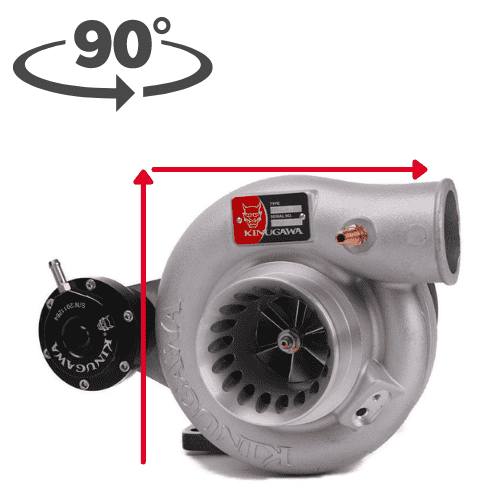

Kinugawa Turbo 3" Anti-Surge TD05H-18G 6cm Bolt-on for Nissan Patrol TD42 Top Mount Oil-Cooled 90 Degree
Regular price
$1,409.00 AUD
Regular price
Sale price
$1,409.00 AUD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Application
- Fits for Nissan TD42 Patrol Safari GR GQ Y60, GU Y61 TD42T engine
- Fits for Radius Fabrications TD42 High Mount Turbo Manifold has a T3 turbo flange.
Note: Kinugawa has developed the perfect combination of performance and ease of fitment. The advantage of this bolt-on kit is that it suits most aftermarket intercooler kits currently on the market with minimal modifications. If you plan to use a 12mm pump, go on an 18G/AR 6cm.
- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
CHRA Size
CHRA Size
- TD05H-18G
Wheels Spec
- Compactor wheel: 50.3 / 68.0 mm (The 6+6 blades are better for low-end torque and the 11+0 type is for top-end speed)
- Turbine wheel: 56 / 49.2 mm (3 types available: STD, STS, STS55. )
Compressor Housing
- Nozzle area: AR.60
- Inlet: 3" anti-surge
- Outlet: 2"

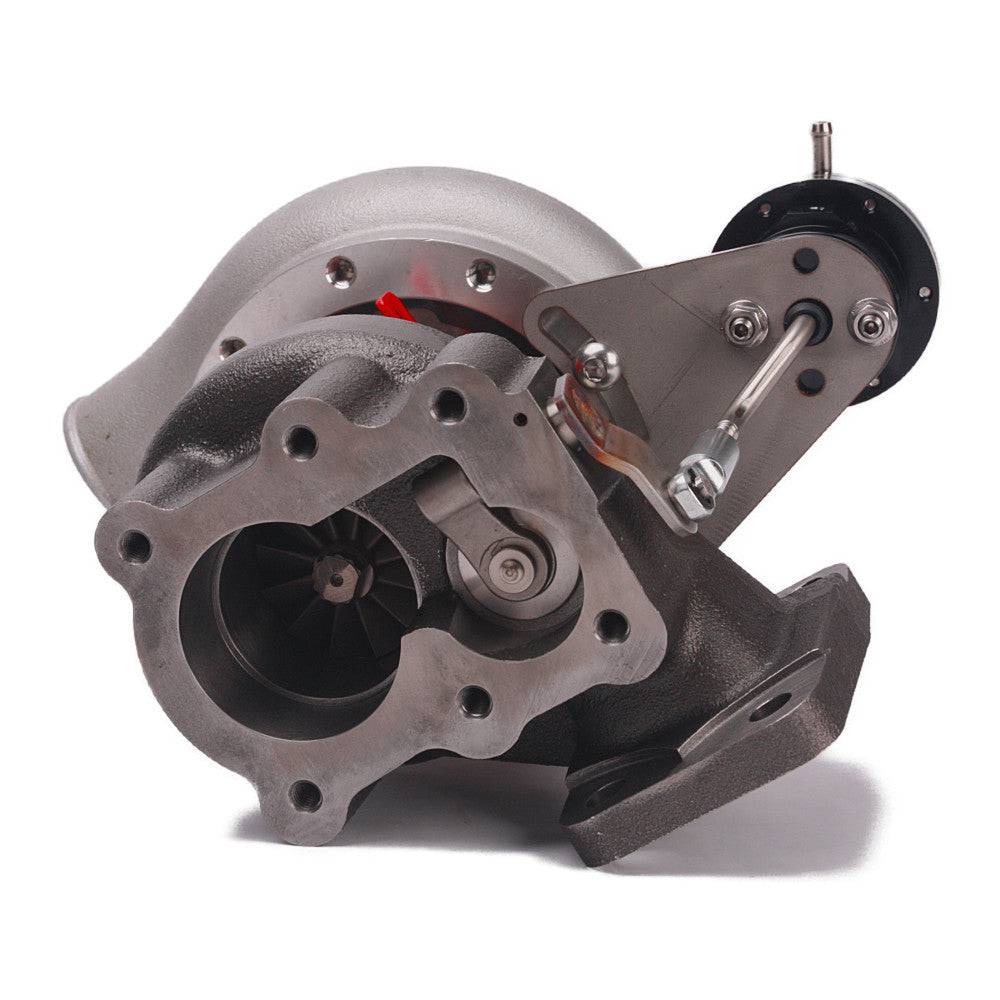

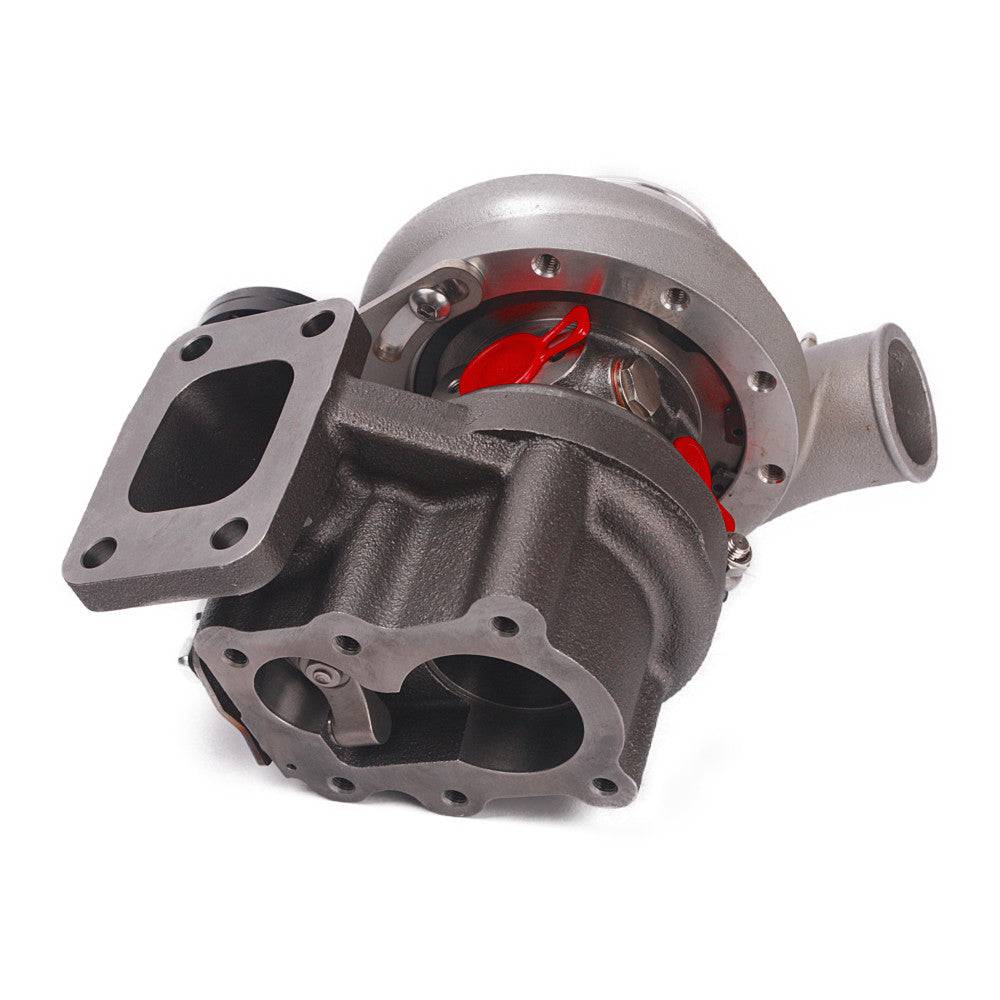

Turbine Housing
- Nozzle area: 6cm / AR.41
- Inlet: T3
- Outlet: TD42 bolt-on to the stock dump pipe
- Wastegate: internal gated
- Inlet: 3" anti-surge
- Outlet: 2"
Turbine Housing
- Nozzle area: 6cm / AR.41
- Inlet: T3
- Outlet: TD42 bolt-on to the stock dump pipe
- Wastegate: internal gated
Bearing Type
- Journal bearing system with 360-degree thrust bearing kit
Cooling Type
- Oil cooling
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.

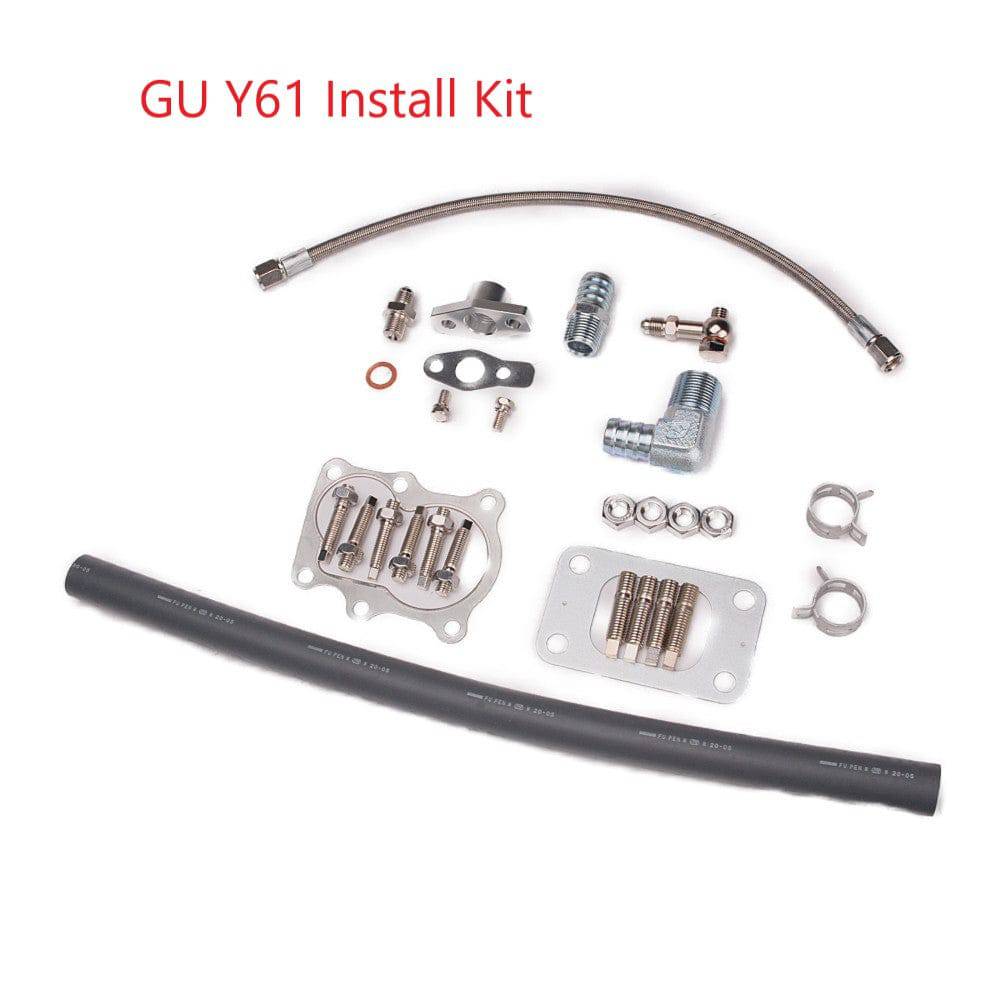

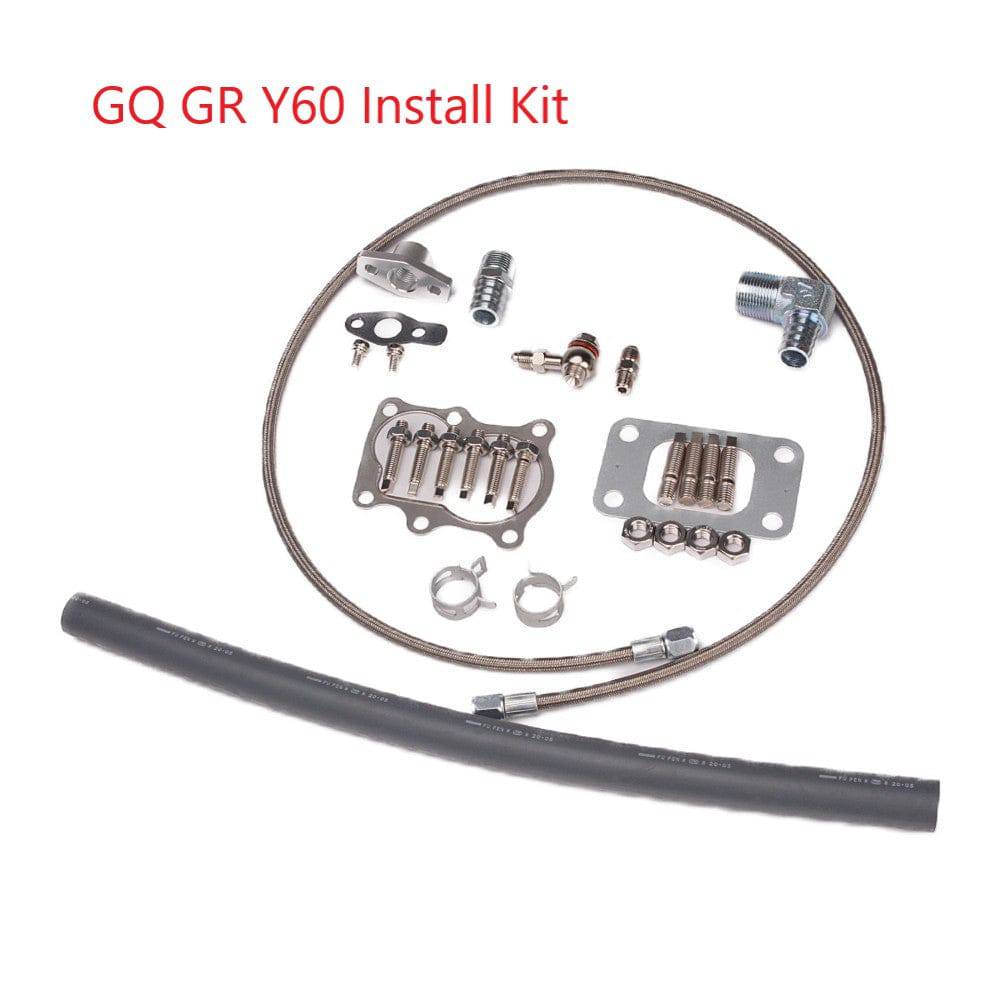

The set includes
- 1 x Oil supply set
- 1 x T3 gasket
- 1 x TD42 Turbine outlet gasket
- 1 x Turbocharger
- 1 x Kinugawa Balance Report with an Anti-counterfeit Tag
Situation
- Brand New
- Full balance from Schenk MBRS110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
Shipping & delivery
Ships direct from Kinugawa Turbo Systems via DHL Express, with import duties and taxes already paid. Each turbo is built and balanced to order (3-5 working days), so allow about 7-9 days for delivery Australia-wide.
Not sure which turbo suits your build, or need a different actuator pressure? Get in touch with the FlexAppeal4x4 team before you order and we'll help you pick the right one.
