Kinugawa Turbo 3" TD05H-16K 7cm for Toyota Land Cruiser 12HT HJ61 Coaster HB20 HB30 4L

- Fits Toyota Land Cruiser HJ61

- Fits Toyota Land Cruiser J60 4-speed H41F or H42F manual transmission U.S. market only.)
- Toyota Coaster HB20, HB30

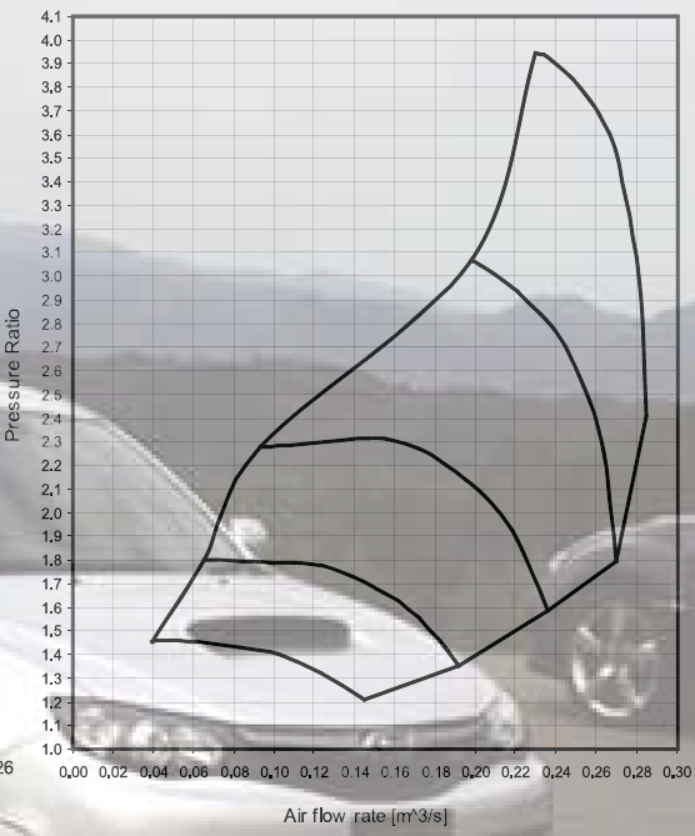

- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.

CHRA Size

- TD05H-16K

Wheels Spec

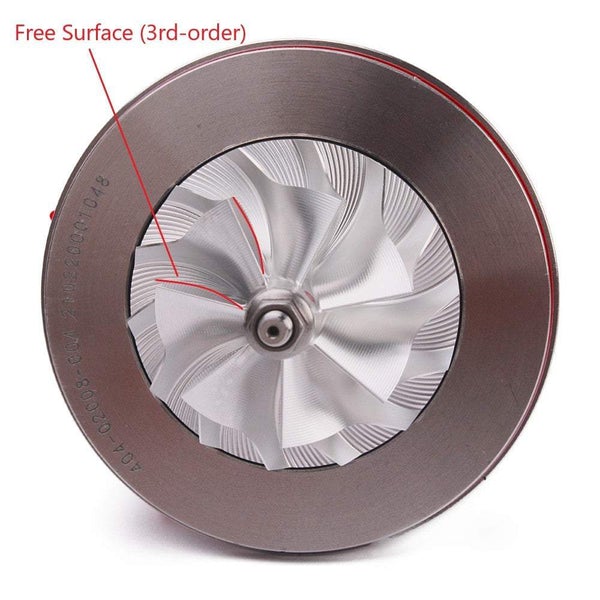

- Compressor wheel: 49.96 / 68.0 mm (7+7 Point-Milled)

This high-performance 68mm compressor blends quick response and top-end power with OE reliability. The billet 16KX (aka 16K) billet compressor wheel utilizes their latest generation blade aero with 7 primary blades and 7 splitter blades.

	Free Surface	Ruled Surface
Process	Point Milling	Flank Milling
Machining Time	Slow 120 mins.each	Quick 15 mins. each
Characters	1. Free Surface can be only produced by Point Milling 2. More air pressure and increase much better flow efficiency. 3. Only suitable to the very easy design of compressor wheel 4. Mainly for high-efficiency turbochargers.	1. Ruled Surface can be produced by Flank Milling 2. Low efficiency 3. Only suitable to the very easy design of compressor wheel 4. Mainly for fundamental mechanical engineering such as Centrifugal compressor

- Turbine wheel: 56.0 / 49.2 mm (3 types offered: STD, STS, STS55.)

Compressor Housing

- Nozzle area: AR.60
- Inlet: 3"
- Outlet: 2"

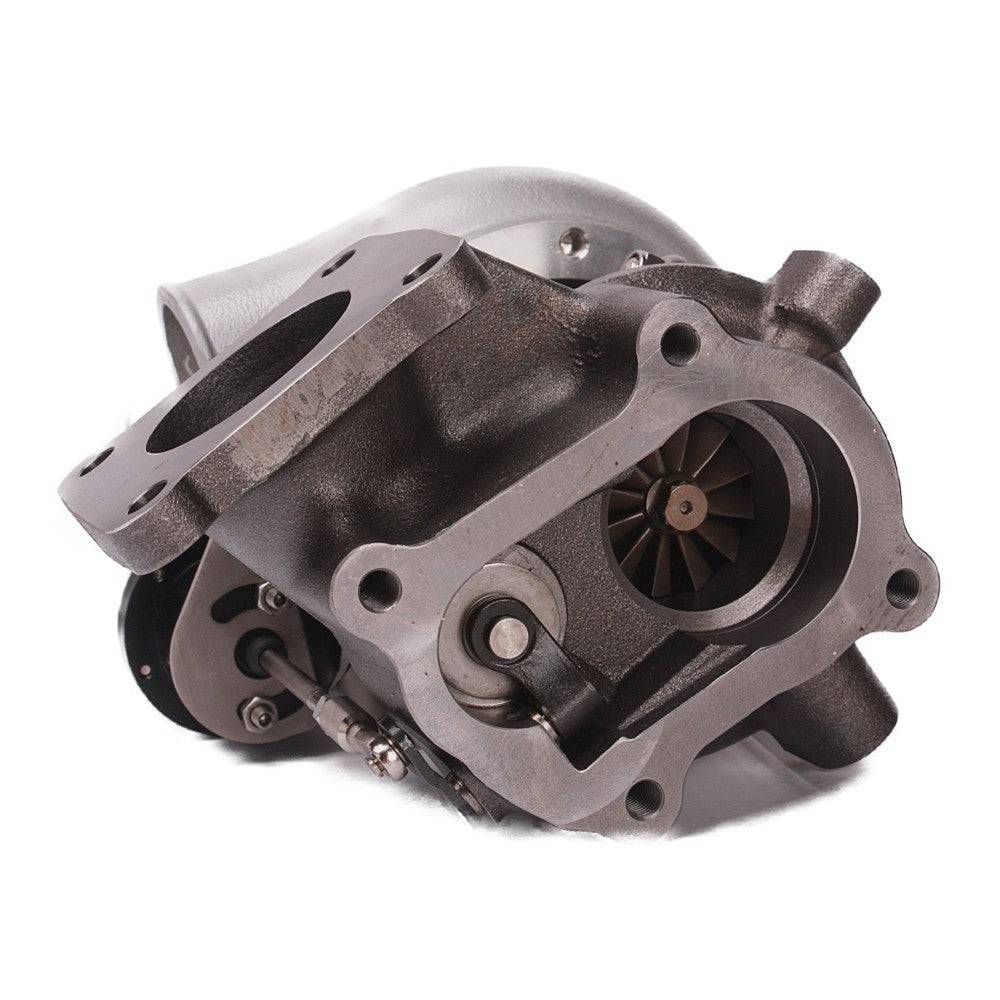

Turbines Housing

- Nozzle area: 7cm / AR.49 (faster spool response than the stock 8cm)
- Inlet: Toyota CT26 4-bolt
- Outlet: Toyota CT26 4-bolt
- Wastegate: internal gated
- Bolt-on stock type

Bearing Type

- Journal bearing system with 360-degree thrust bearing kit

Cooling Type

- Oil and water cooling

Actuator Pressure

- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.

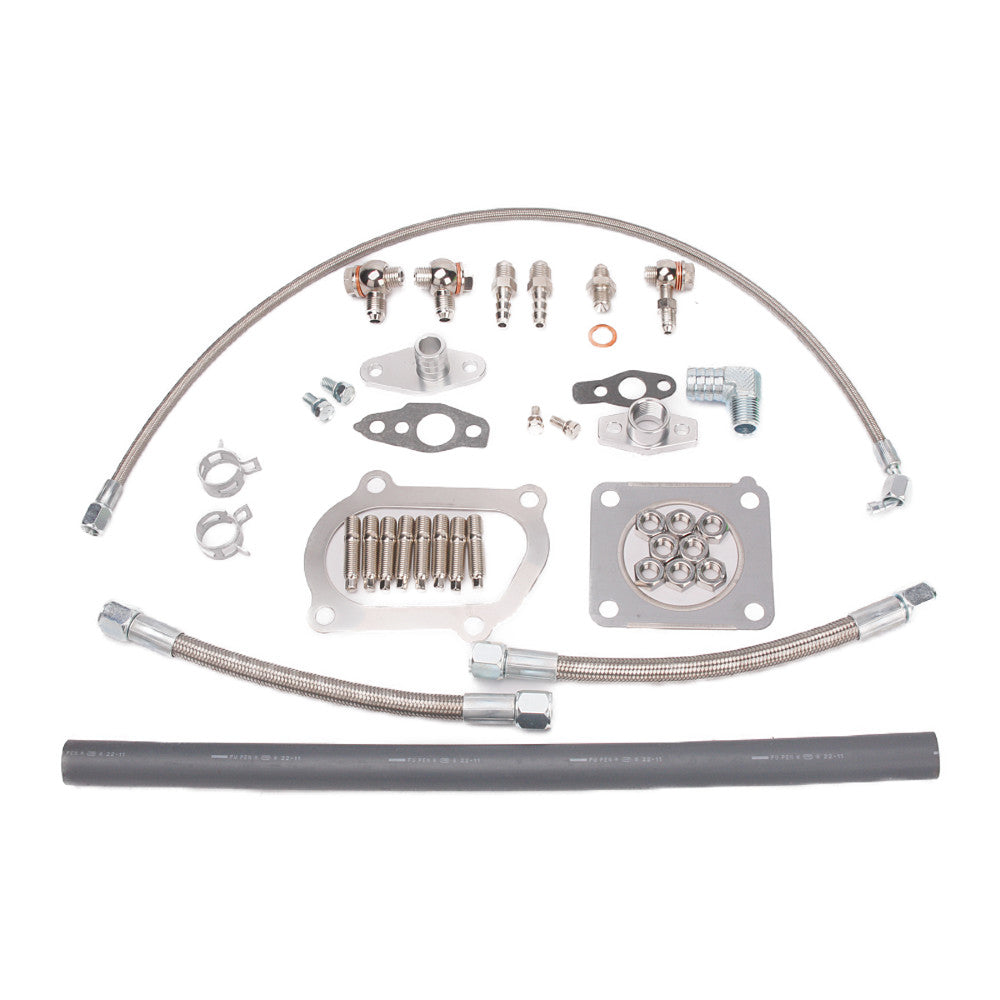

The Set Includes

- 1 x Oil supply set

- 1 x Water coolant and return set

- 1 x Turbine Inlet and outlet gaskets

- 1 x Turbocharger

- 1 x Kinugawa Balance Report with an Anti-counterfeit Tag

Install kit instruction

Situation

- Brand New

- Full balance from Schenk MBRS110 Germany

Provider

- Kinugawa Turbo Systems

Warranty

- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA will cover you no matter the issue.

Shipping & delivery

Ships direct from Kinugawa Turbo Systems via DHL Express, with import duties and taxes already paid. Each turbo is built and balanced to order (3-5 working days), so allow about 7-9 days for delivery Australia-wide.

Not sure which turbo suits your build, or need a different actuator pressure? Get in touch with the FlexAppeal4x4 team before you order and we'll help you pick the right one.
