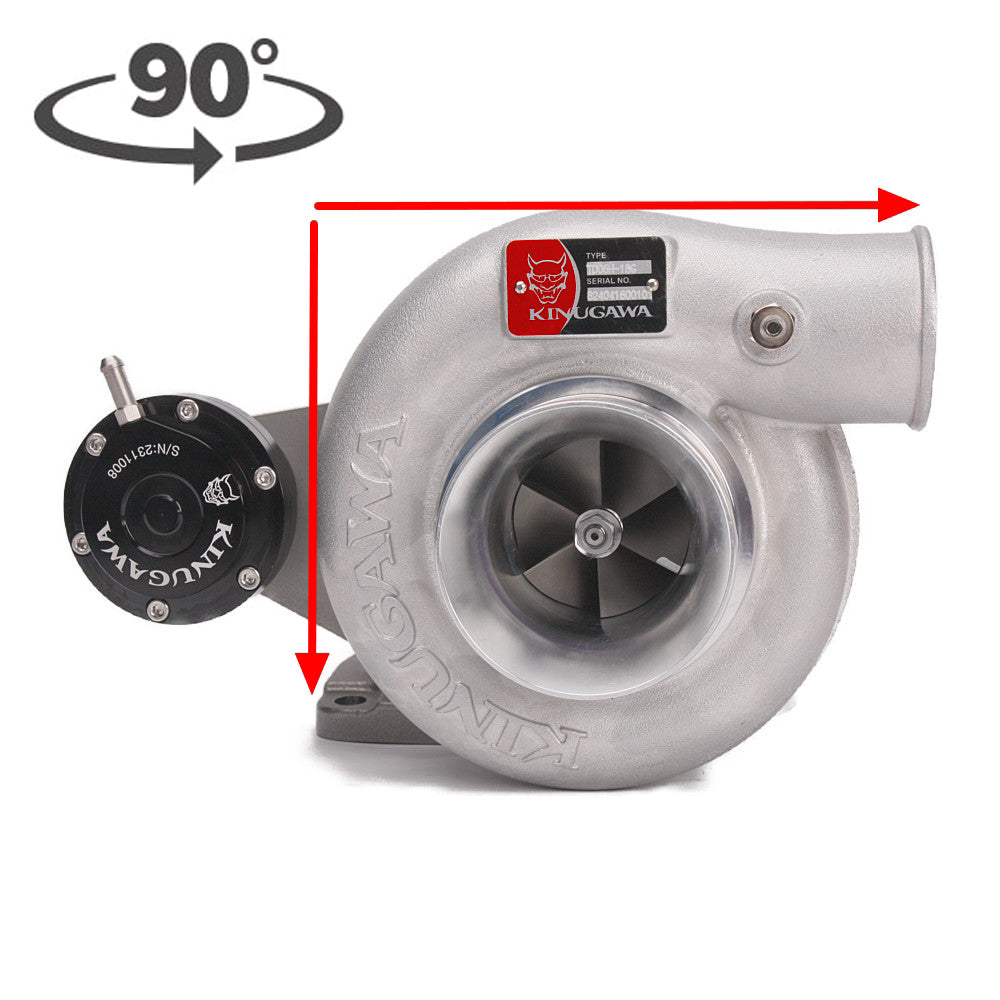

Kinugawa Turbo 3" TD05H-18G 6cm 2.5" V-Band for Nissan Patrol TD42 Top Mount Oil-Cooled 90 Degree
Regular price
$1,409.00 AUD
Regular price
Sale price
$1,409.00 AUD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Application
- Fits for Nissan TD42 Patrol Safari GR GQ Y60, GU Y61 TD42T engine
- Fits for Radius Fabrications TD42 High Mount Turbo Manifold comes with a T3 turbo flange.
- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
CHRA Size
- TD05H-18G
Wheels Spec
- Compressor wheel: 50.3 / 68.0 mm (The 6+6 blades are better for low-end torque and the 11+0 type is for top-end speed)
- Turbine wheel: 56 / 49.2 mm (3 types available: STD, STS, STS55. )
Compressor Housing
- Nozzle area: AR.60
- Inlet: 3" non anti-surge
- Outlet: 2"
Turbine Housing
- Nozzle area: 6cm / AR.41
- Inlet: T3
- Outlet: 2.5" v-band
- Wastegate: internal gated
- Inlet: 3" non anti-surge
- Outlet: 2"
Turbine Housing
- Nozzle area: 6cm / AR.41
- Inlet: T3
- Outlet: 2.5" v-band
- Wastegate: internal gated
Bearing Type
- Journal Bearing with a performance 360-degree thrust bearing kit.
Cooling Type
- Oil Cooling System
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.

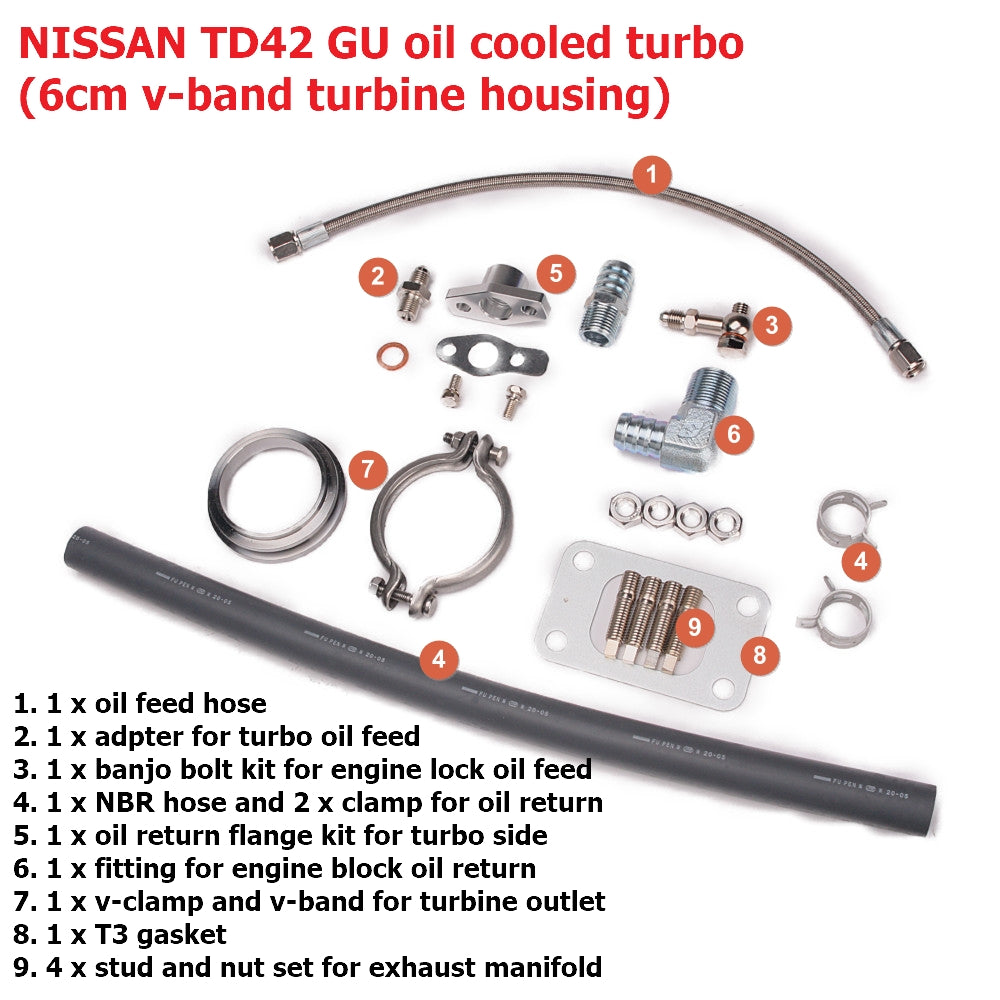

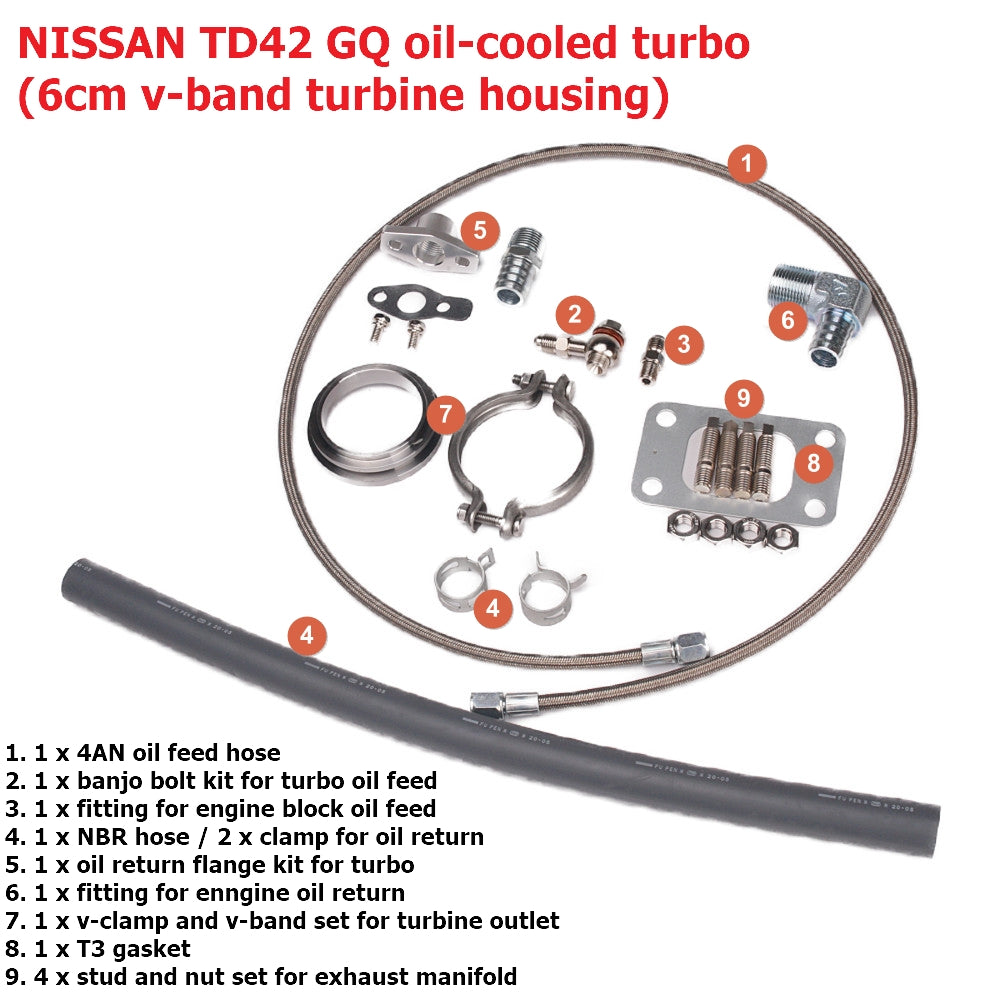

The set includes
- 1 x Oil supply set
- 1 x T3 gasket

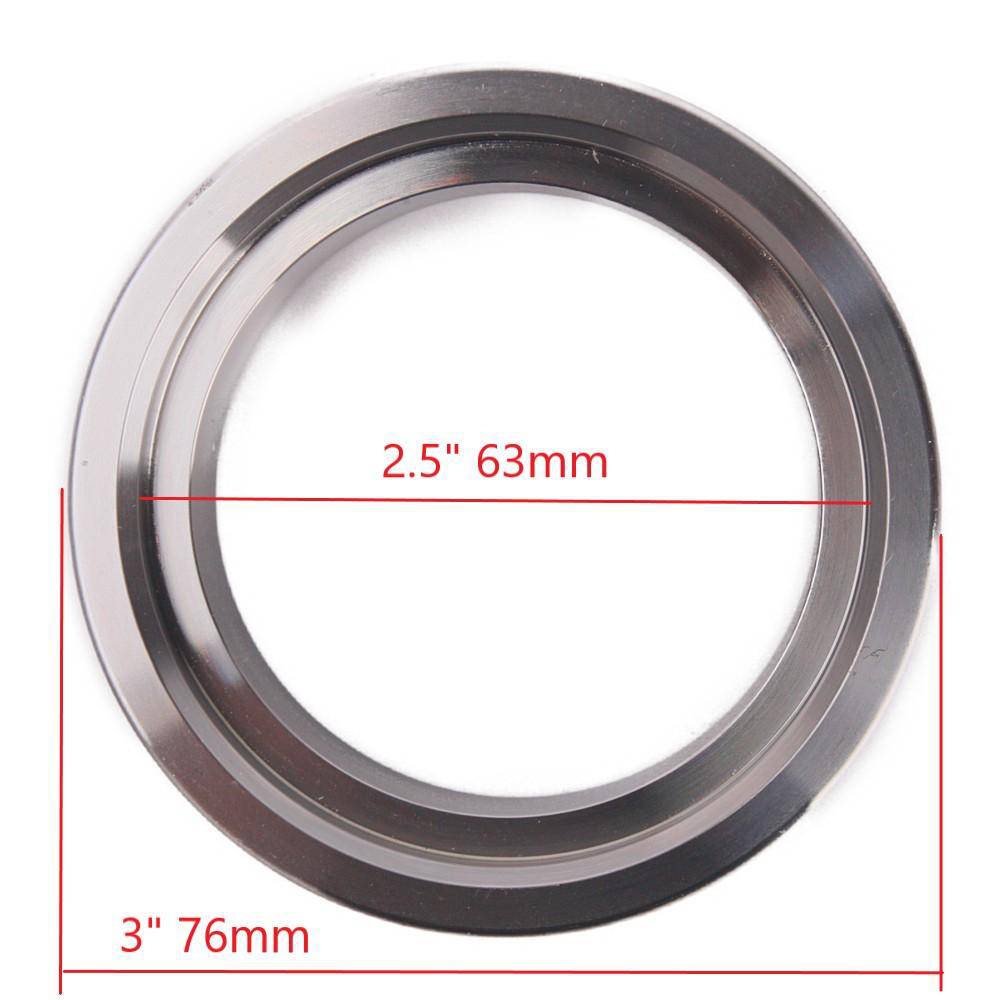

- 1 x V-Clamp and V-Band Socket Adapter Kit
- 1 x Turbocharger
- 1 x Kinugawa Balance Report with an Anti-counterfeit Tag
Situation
- Brand New
- Full balance from Schenk MBRS110 Germany
Provider
- Kinugawa Turbo System
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
Shipping & delivery
Ships direct from Kinugawa Turbo Systems via DHL Express, with import duties and taxes already paid. Each turbo is built and balanced to order (3-5 working days), so allow about 7-9 days for delivery Australia-wide.
Not sure which turbo suits your build, or need a different actuator pressure? Get in touch with the FlexAppeal4x4 team before you order and we'll help you pick the right one.
