Kinugawa Turbo 3" TD05H-18G 6cm Bolt-on for Nissan Patrol TD42 Low Mount Water-Cooled
Regular price
$1,409.00 AUD
Regular price
Sale price
$1,409.00 AUD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Application
- Fits for Nissan TD42 Patrol Safari GR GQ Y60, GU Y61 TD42T engine
- Fits for Radius Fabrications TD42 Low Mount Turbo Manifold has a T3 turbo flange.
Note: If you plan to use a 12mm pump, go on an 18G/AR 6cm. The one is based on the rear housing being a bolt-up to your factory dump pipe.
- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
CHRA Size
- TD05H-18G
Wheels Spec
- Compactor wheel: 50.3 / 68.0 mm (The 6+6 blade type is better for low-end torque, and the 11+0 is for top-end speed)
- Turbine wheel: 56.0 / 49.2 mm (3 types offered: STD, STS, STS55.)

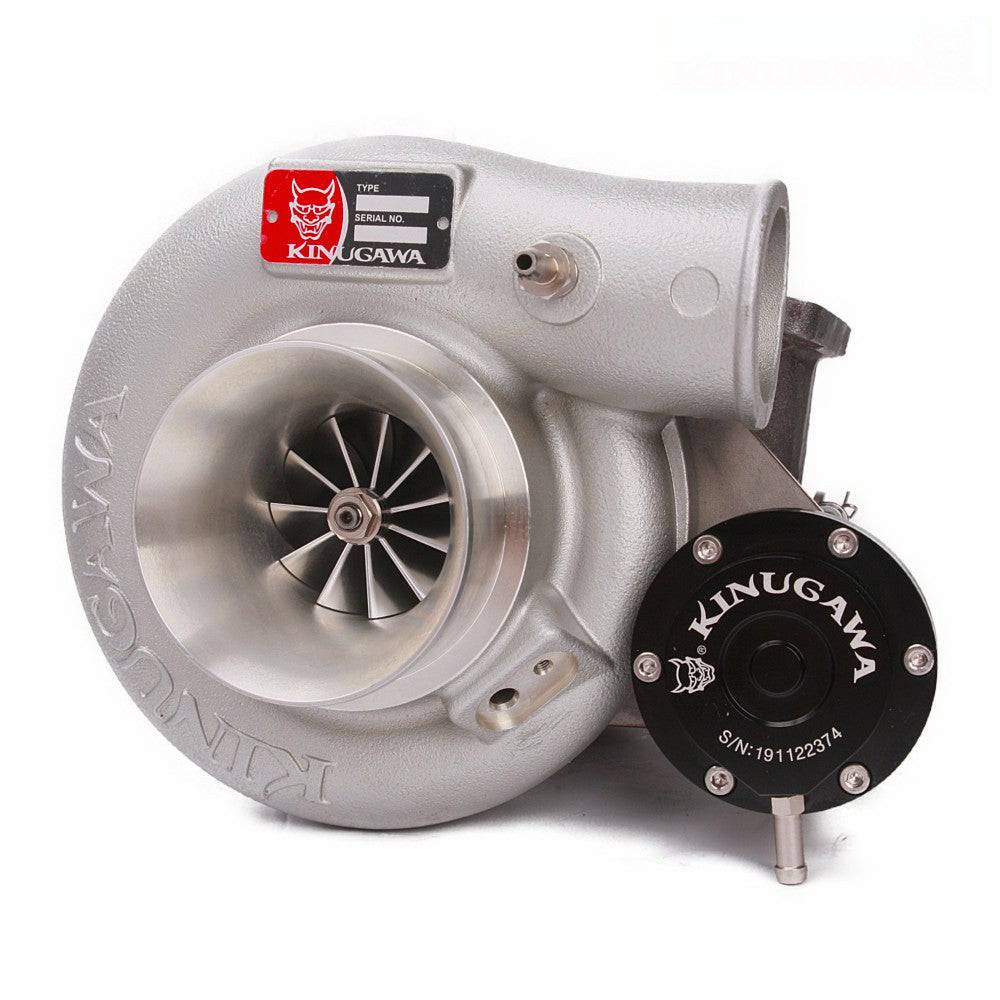

Compressor Housing
- Nozzle area: AR.60
- Inlet: 3" non anti-surge
- Outlet: 2"

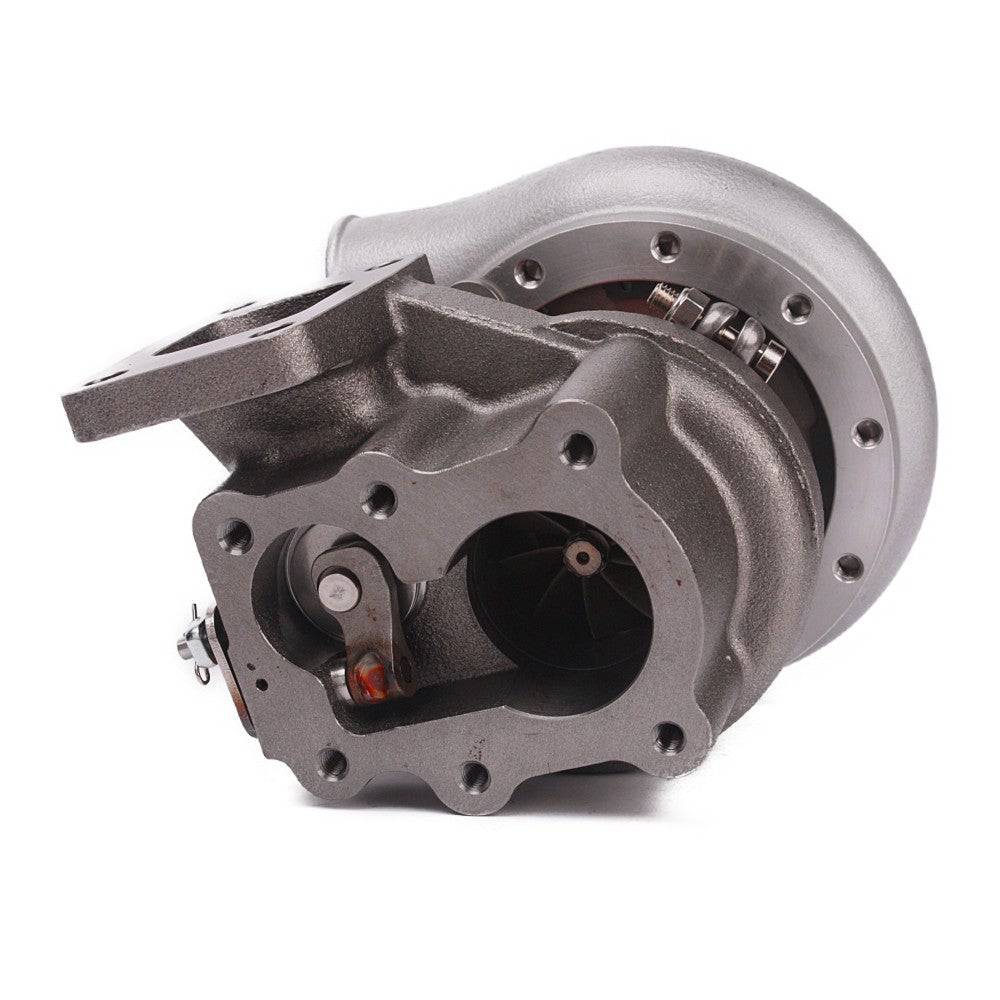

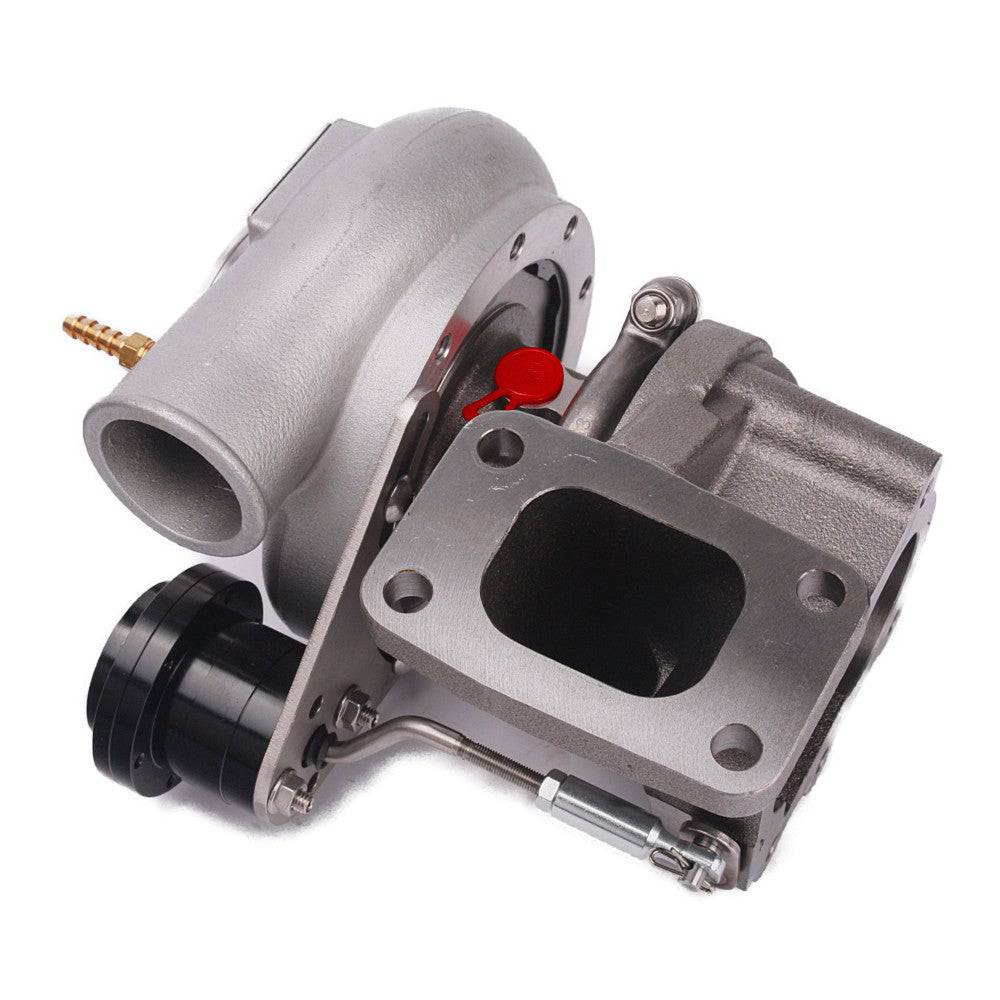

Turbine Housing
- Nozzle area: 6cm / AR.41
- Inlet: T3
- Outlet: TD42 bolt-on to the stock dump pipe
- Wastegate: internal gated
- Inlet: 3" non anti-surge
- Outlet: 2"
Turbine Housing
- Nozzle area: 6cm / AR.41
- Inlet: T3
- Outlet: TD42 bolt-on to the stock dump pipe
- Wastegate: internal gated
Bearing Type
- Journal bearing system with 360-degree thrust bearing kit
Cooling Type
- Oil and water cooling
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
The set includes
- 1 x Oil supply set
- 1 x Water coolant and return set
- 1 x T3 gasket
- 1 x TD42 Turbine outlet gasket
- 1 x Turbocharger
- 1 x Kinugawa Balance Report with an Anti-counterfeit Tag

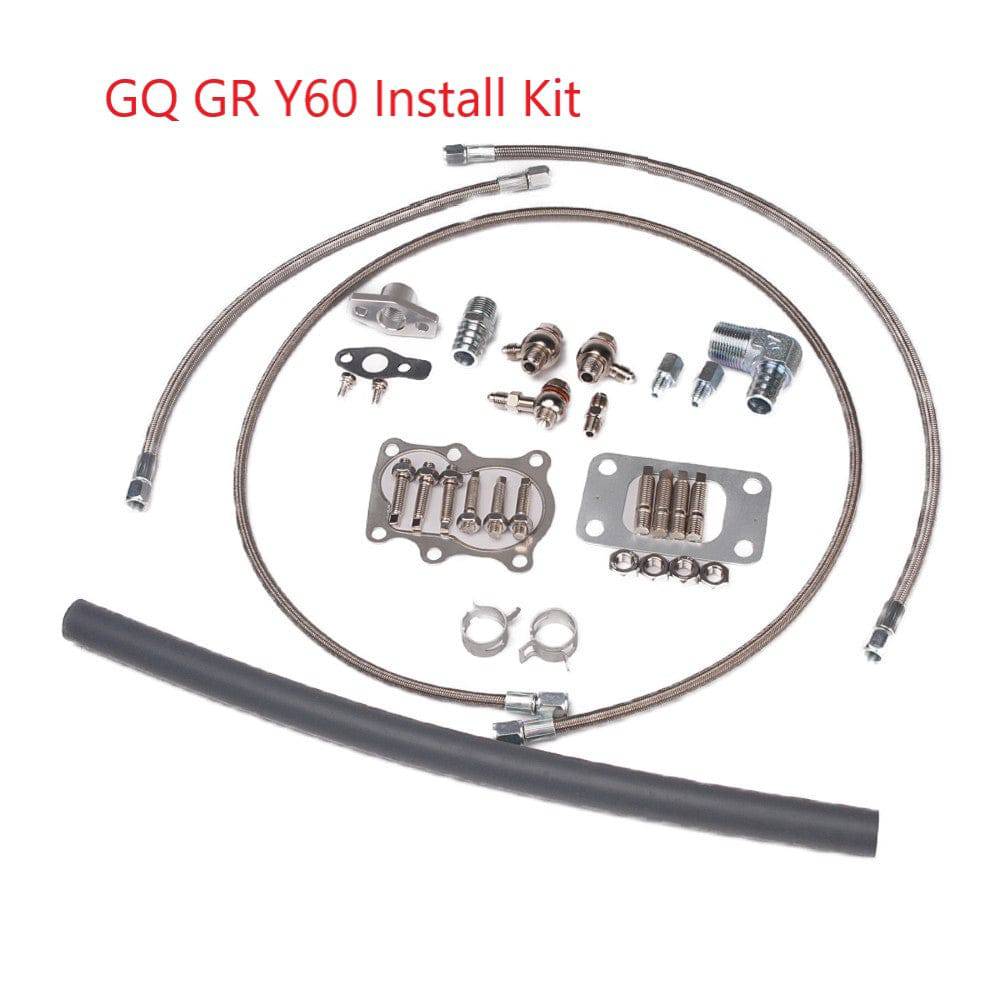

[GR GQ Y60 Install Kit Instruction]

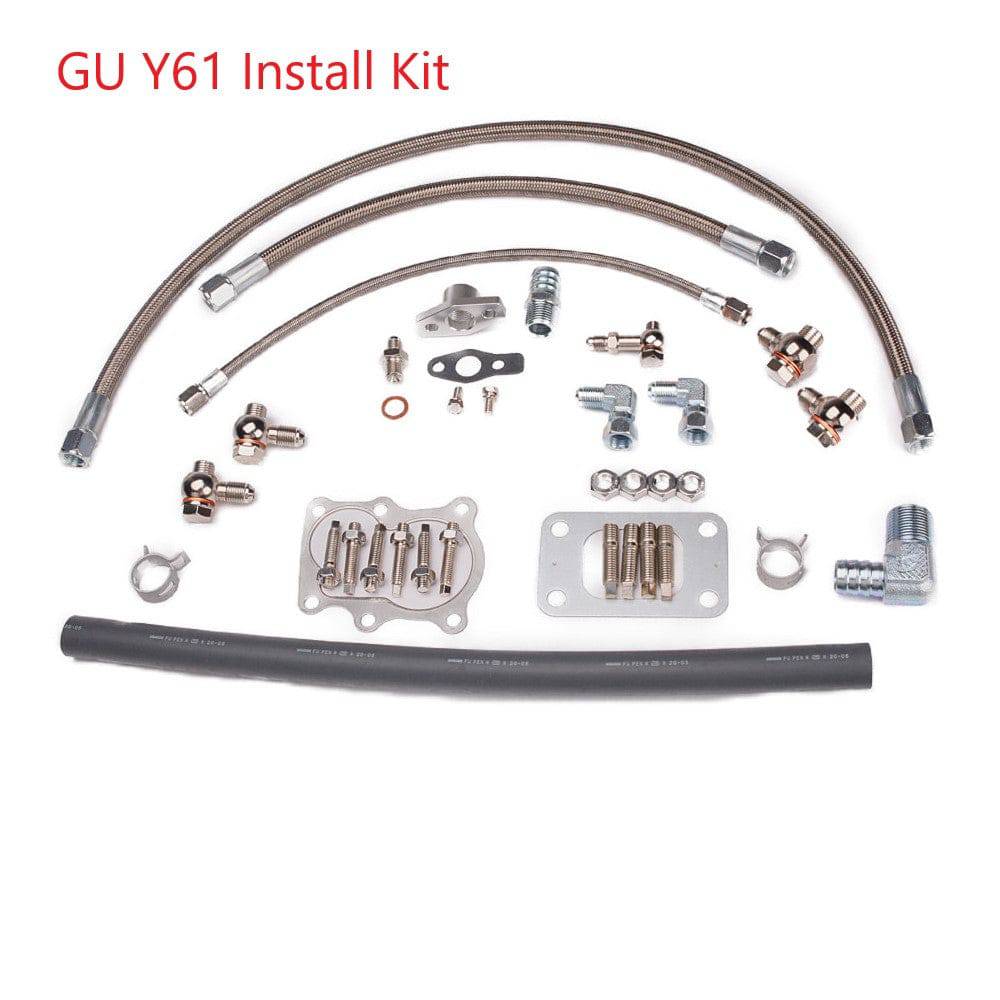

[GU Y61 Install Kit Instruction]
Situation
- Brand New
- Full balance from Schenk MBRS110 Germany
Provider
- Kinugawa Turbo System
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
Shipping & delivery
Ships direct from Kinugawa Turbo Systems via DHL Express, with import duties and taxes already paid. Each turbo is built and balanced to order (3-5 working days), so allow about 7-9 days for delivery Australia-wide.
Not sure which turbo suits your build, or need a different actuator pressure? Get in touch with the FlexAppeal4x4 team before you order and we'll help you pick the right one.
