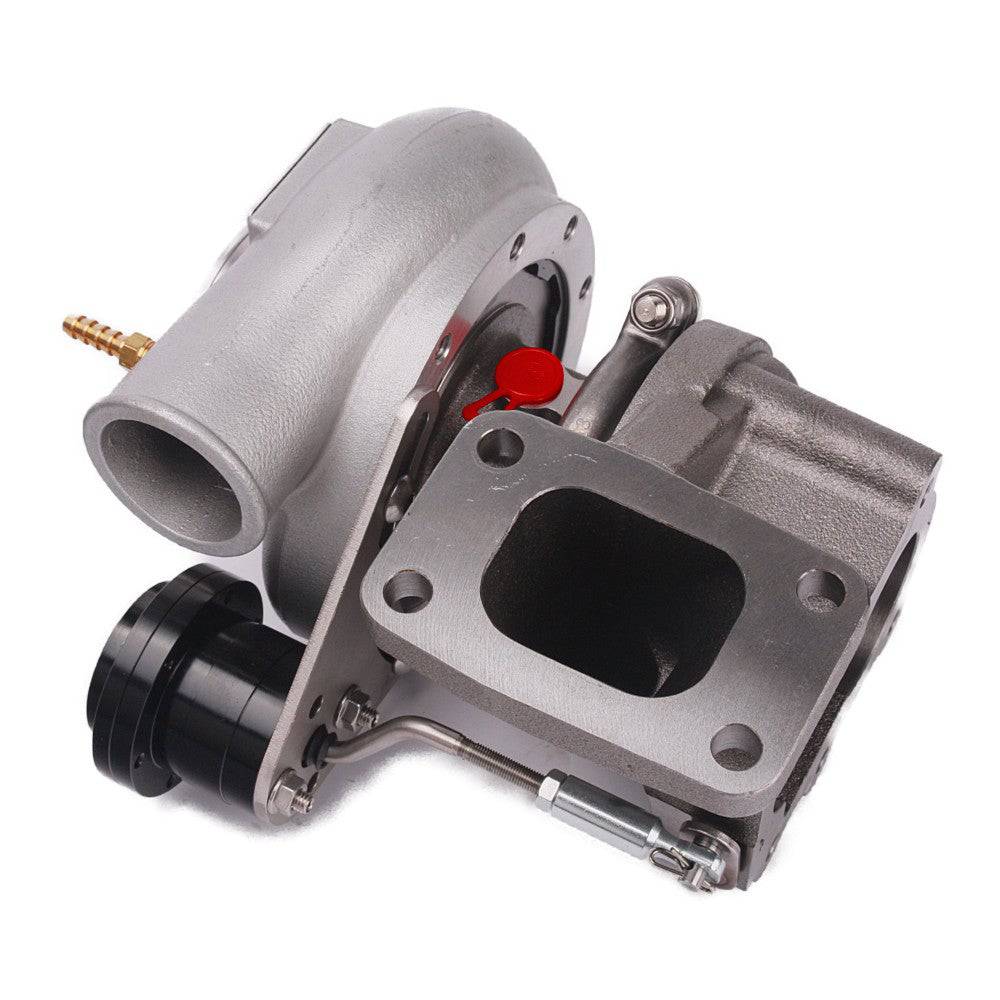

Kinugawa Turbo 4" Anti-Surge TD05H-20G 6cm Bolt-on for Nissan Patrol TD42 Low Mount Oil-Cooled

$1,409.00 AUD
$1,409.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
Model
Compressor Wheel
Turbine Wheel
Application
- Fits for Nissan TD42 Patrol Safari GR GQ  Y60, GU Y61 TD42T engine
- Fits for Radius Fabrications TD42 Low Mount Turbo Manifold has a T3 turbo flange.

- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
CHRA Size
- TD05H-20G

Wheels Spec
- Compactor wheel: 52.3 / 68.0 mm (The 6+6 blade type is better for low-end torque, and the 11+0 is for top-end speed)
- Turbine wheel: 56.0 / 49.2 mm (3 types offered: STD, STS, STS55.)

Kinugawa STS Superior Turbine Strike Technology Evolution

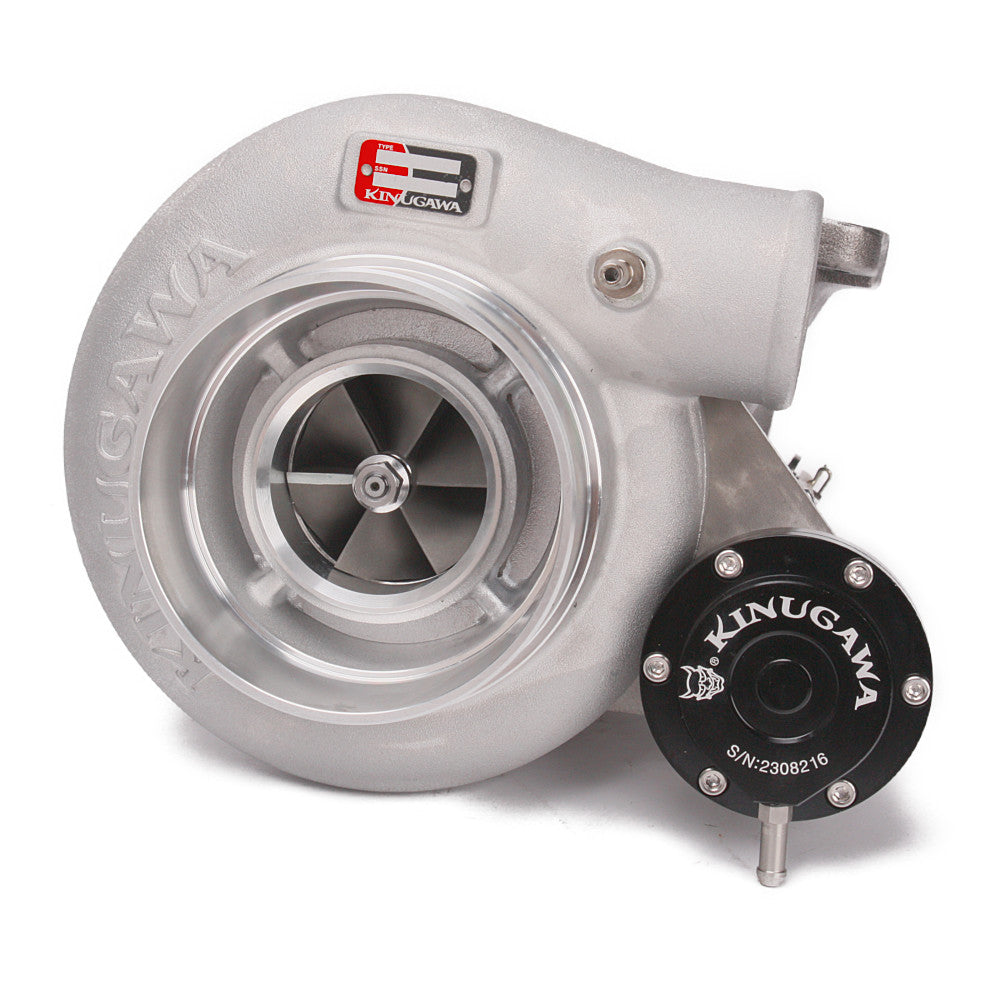

Compressor Housing
- Nozzle area: AR.60
- Inlet: 4" anti-surge
- Outlet: 2"

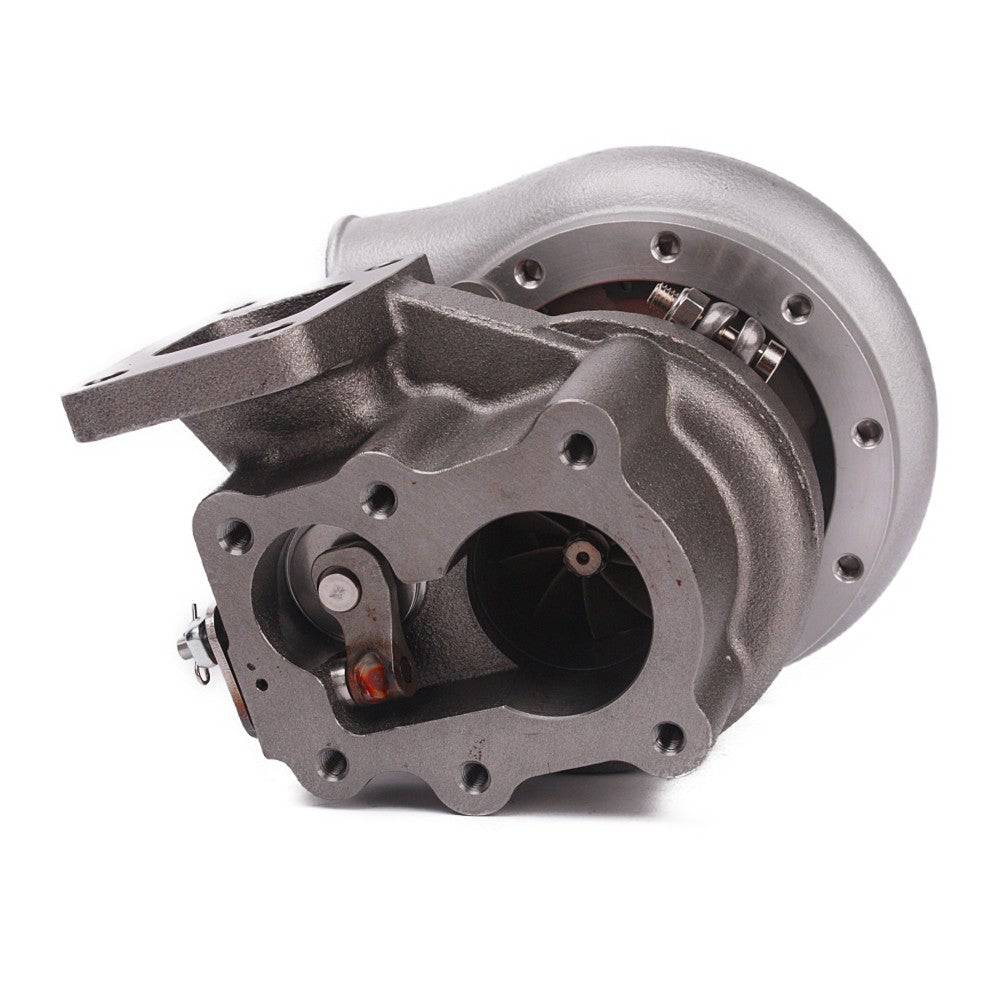

Turbine Housing
- Nozzle area: 6cm / AR.41
- Inlet: T3
- Outlet: TD42 bolt-on to the stock dump pipe
- Wastegate: internal gated

Bearing Type
- Journal bearing system with 360-degree thrust bearing kit

Cooling Type
- Oil cooling

Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.

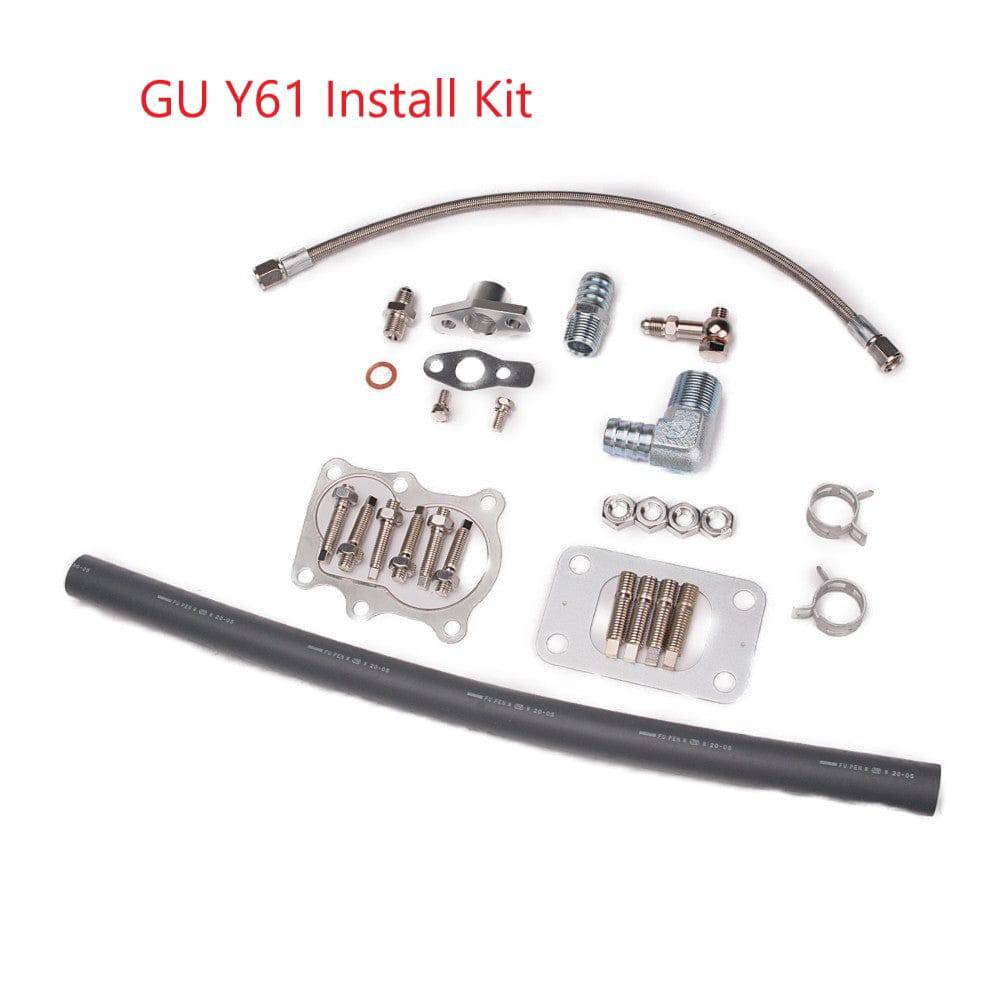

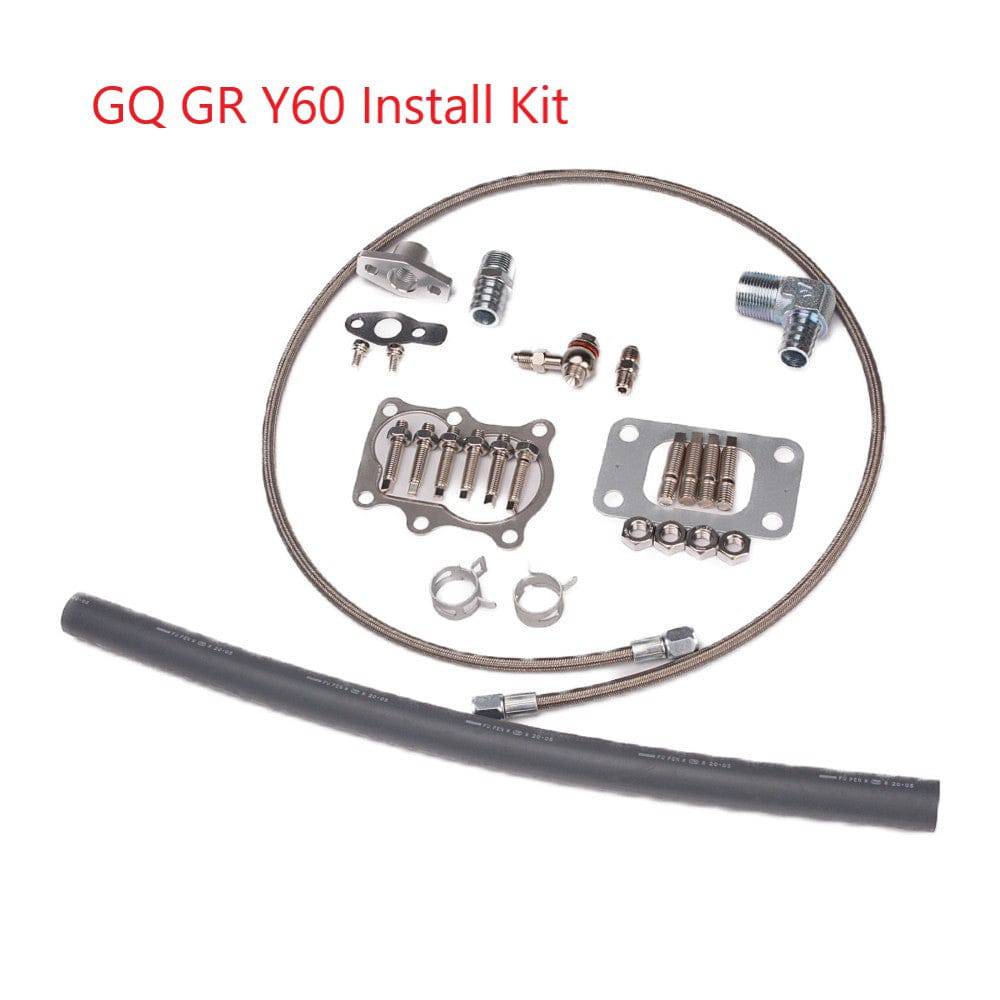

The set includes
- 1 x Oil supply set
- 1 x T3 gasket
- 1 x TD42 Turbine outlet gasket
- 1 x Turbocharger
- 1 x Kinugawa Balance Report with an Anti-counterfeit Tag

Install Kit Instruciton
Situation
- Brand New
- Full balance from Schenk MBRS110 Germany

Provider
- Kinugawa Turbo System

Warranty
Kinugawa 1-Year Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.

Shipping & delivery

Ships direct from Kinugawa Turbo Systems via DHL Express, with import duties and taxes already paid. Each turbo is built and balanced to order (3-5 working days), so allow about 7-9 days for delivery Australia-wide.

Not sure which turbo suits your build, or need a different actuator pressure? Get in touch with the FlexAppeal4x4 team before you order and we'll help you pick the right one.
