KINUGAWA

Kinugawa Turbo Ball Bearing 3" TD05H-18G 6cm Bolt-on for Nissan Patrol TD42 Low Mount Water-Cooled

$1,889.00 AUD
$1,889.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
Model
Compressor Housing
Compressor Wheel
Application
- Fits for Nissan TD42 Patrol Safari GR GQ  Y60, GU Y61 TD42T engine
- Fits for Radius Fabrications TD42 Low Mount Turbo Manifold comes with a
   T3  turbo flange.
Note: Kinugawa has come up with the perfect combination of performance and ease of fitment. The advantage of this bolt-on kit is that it suits most aftermarket intercooler kits currently on the market, with minimal modifications.

CHRA Size
- TD05H-18G

Wheels Spec
- Compactor wheel: 50.3 / 68.0 mm (The 6+6 blades are better for low-end torque and the 11+0 type is for top-end speed)
- Turbine wheel: 56 / 49.2 mm (9 blades STS. )

Compressor Housing
- Nozzle area: AR.60
- Inlet: 3"
- Outlet: 2"

Turbines Housing
- Nozzle area: 6cm^2 / AR.41
- Inlet: T3
- Outlet: TD42 bolt-on to the stock dump pipe
- Wastegate: internal gated

Bearing Type
- Dual Ceramic Ball Bearing

Cooling Type
- Oil and water cooling

Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to a 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.

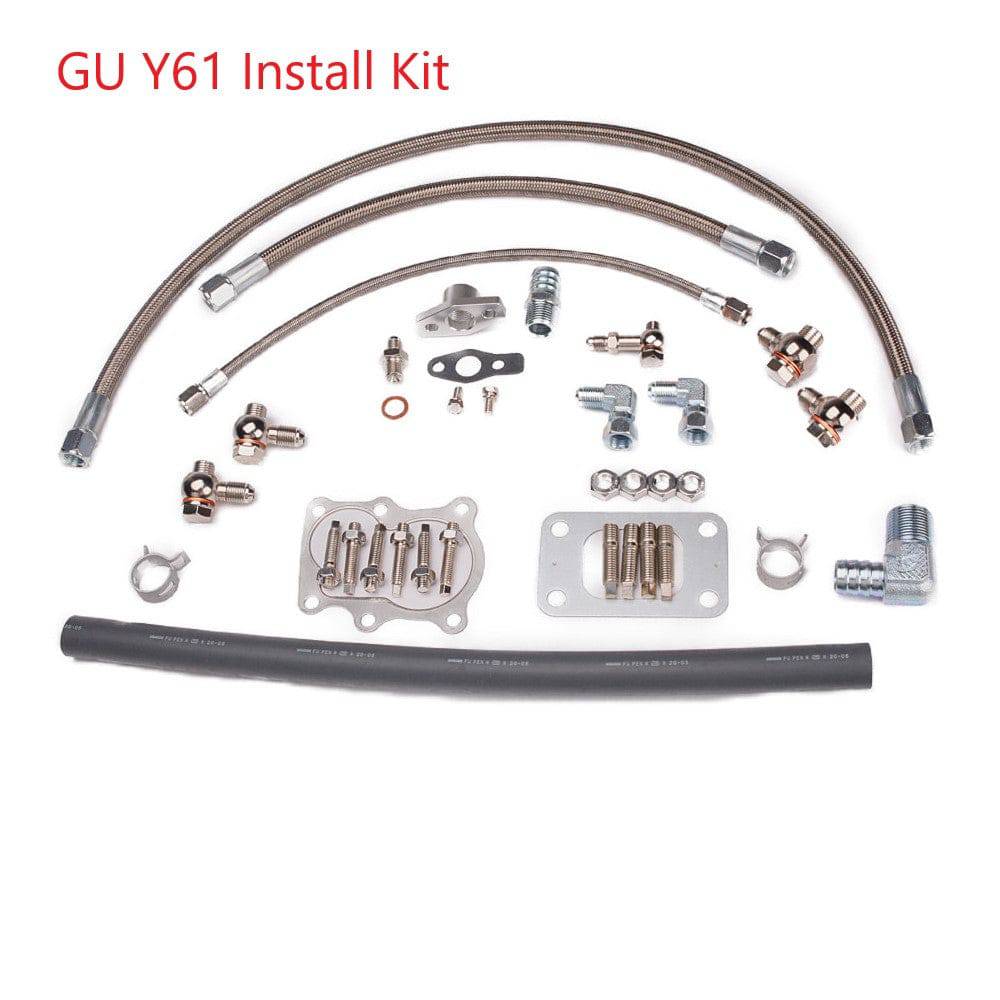

The set includes
- 1 x Oil supply set
- 1 x water coolant and return set
- 1 x T3 gasket
- 1 x TD42 Turbine outlet gasket
- 1 x Turbocharger
- 1 x Kinugawa Balance Report with an Anti-counterfeit Tag

[GR GQ Y60 Install Kit Instruction]

[GU Y61 Install Kit Instruction]
Situation
- Brand New
- Full balance from Schenk MBRS110 Germany

Provider
- Kinugawa Turbo System

Warranty
- One year
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.

Shipping & delivery

Ships direct from Kinugawa Turbo Systems via DHL Express, with import duties and taxes already paid. Each turbo is built and balanced to order (3-5 working days), so allow about 7-9 days for delivery Australia-wide.

Not sure which turbo suits your build, or need a different actuator pressure? Get in touch with the FlexAppeal4x4 team before you order and we'll help you pick the right one.
