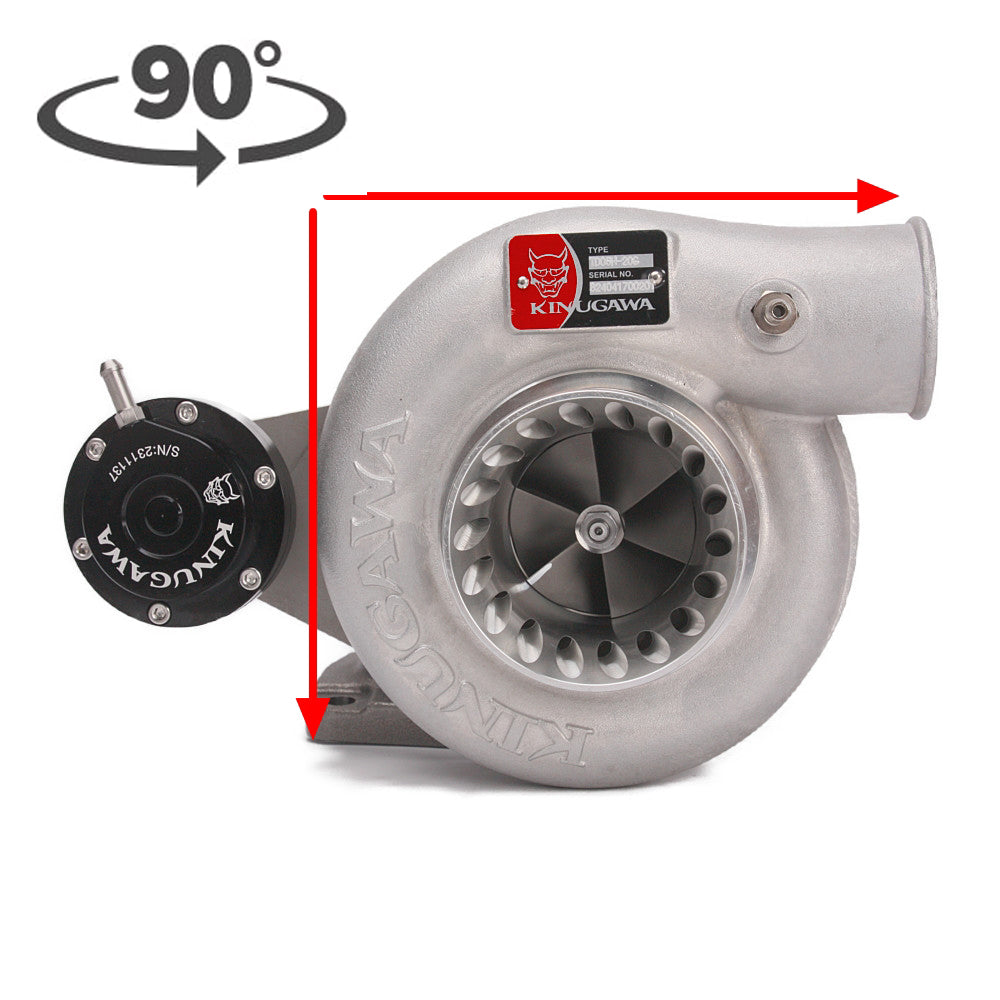

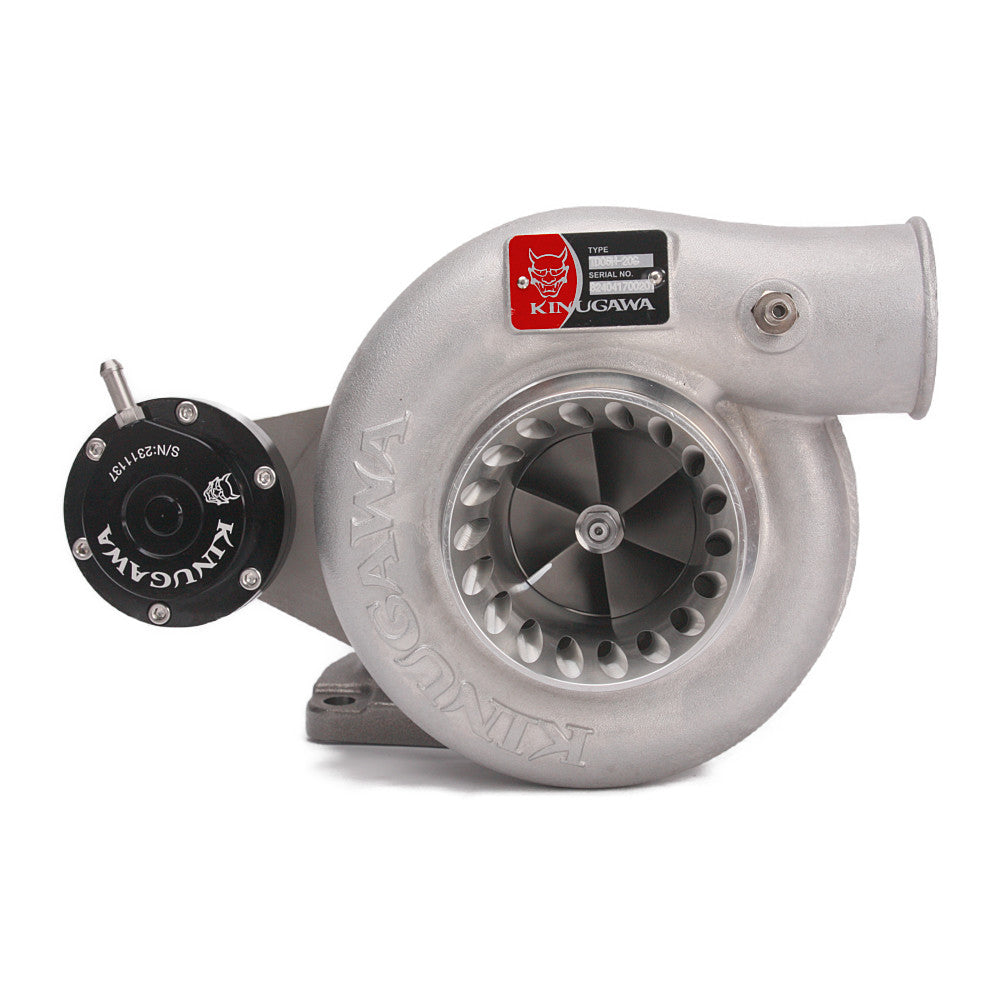

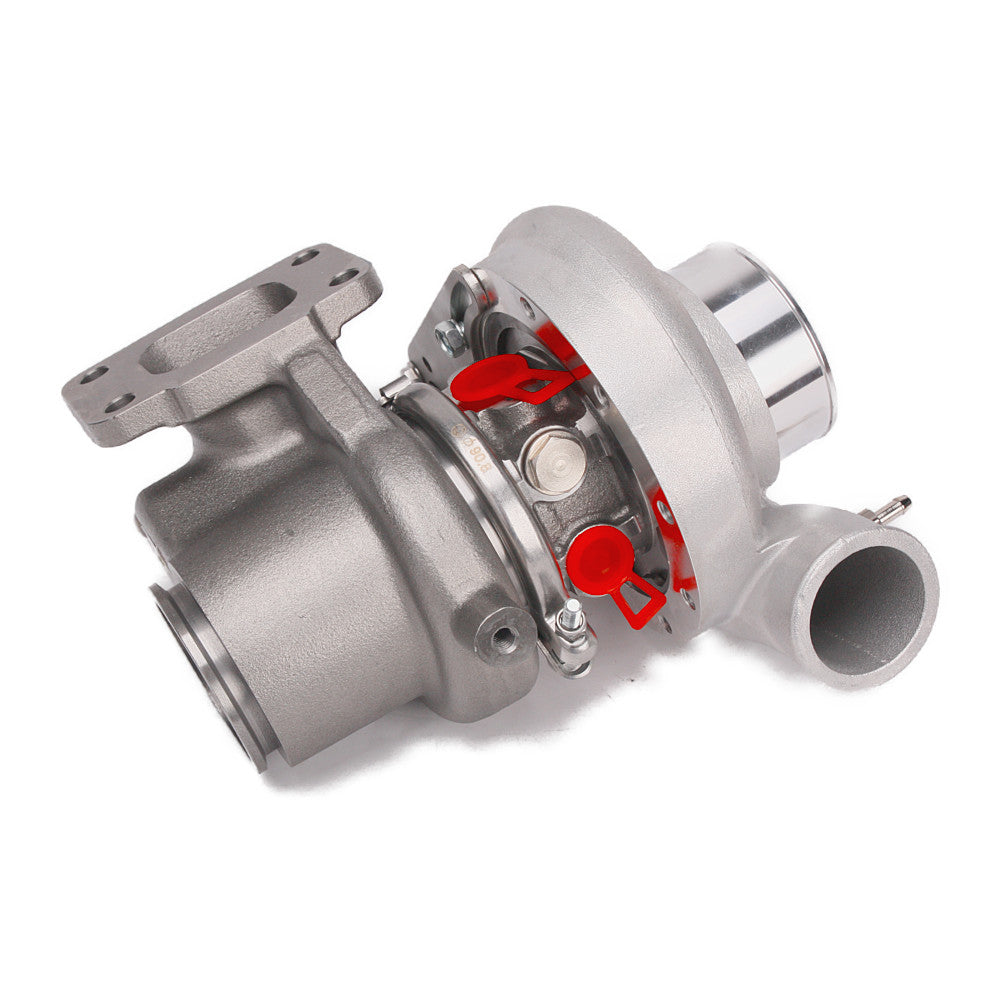

Kinugawa Turbo Ball Bearing 3" Anti-Surge TD05H-18G 6cm 2.5" V-Band for Nissan Patrol TD42 Top Mount Water-Cooled 90 Degree
Regular price
$1,889.00 AUD
Regular price
Sale price
$1,889.00 AUD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Application
- Nissan Patrol Safari GQ GR Y60, GU Y61, TY61 4.2L TD42 TD42T
- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
CHRA Size
- TD05H-18G
Wheels Spec
- Compressor wheel: 50.3 / 68.0 mm (6+6 blades for low-end torque and 11+0 blades for top-end speed)
- Turbine wheel: 56 / 49.2 mm
Compressor Housing
- Nozzle area: AR.60
- Inlet: 3" anti-surge
- Outlet: 2"

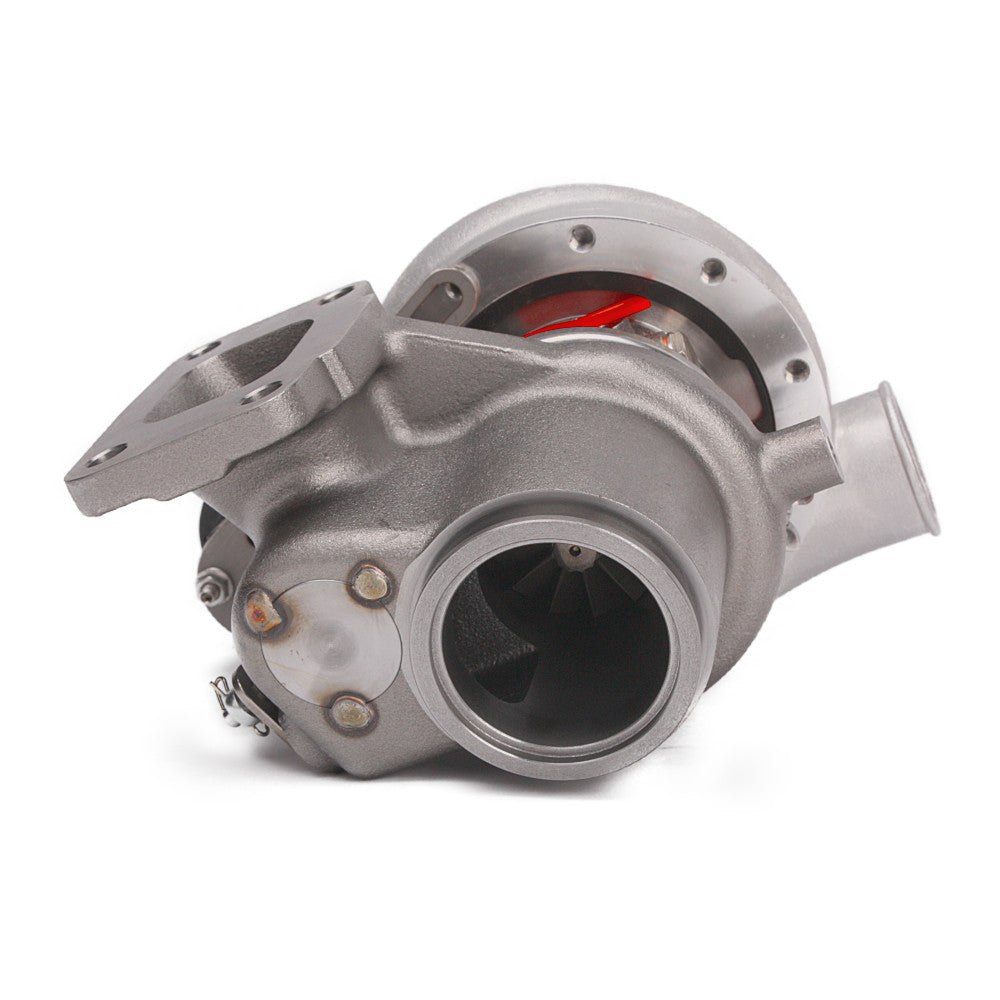

Turbine Housing
- Nozzle area: 6cm / AR.41

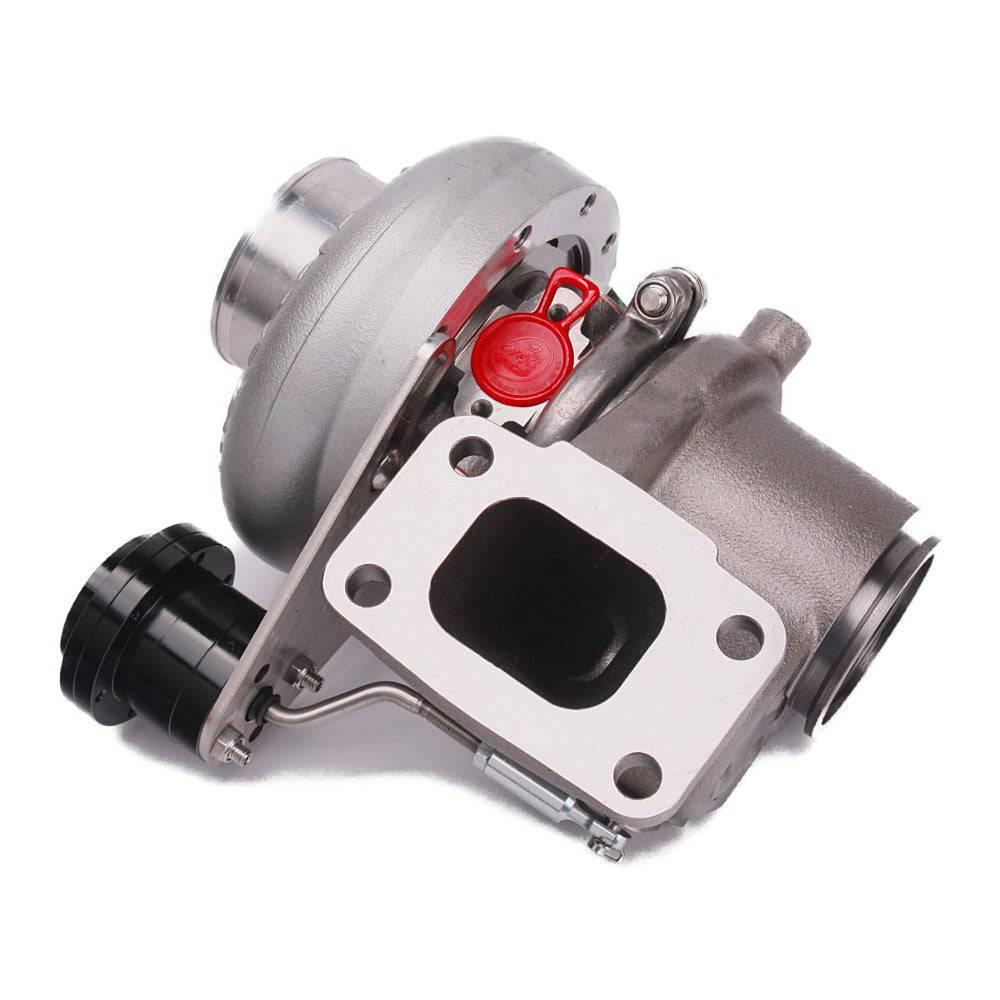

- Inlet: T3
- Outlet: 2.5" v-band
- Wastegate: internal gated
- Inlet: 3" anti-surge
- Outlet: 2"
Turbine Housing
- Nozzle area: 6cm / AR.41
- Inlet: T3
- Outlet: 2.5" v-band
- Wastegate: internal gated
Bearing Type
- STS Advanced (Dual Ceramic Ball Bearing)
Cooling Type
- Oil and Water Cooling System
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
The set includes
- 1 x Turbocharger
- 1 x Oil supply set
- 1 x Water supply and return pipe set
- 1 x Return Oil Pipeline

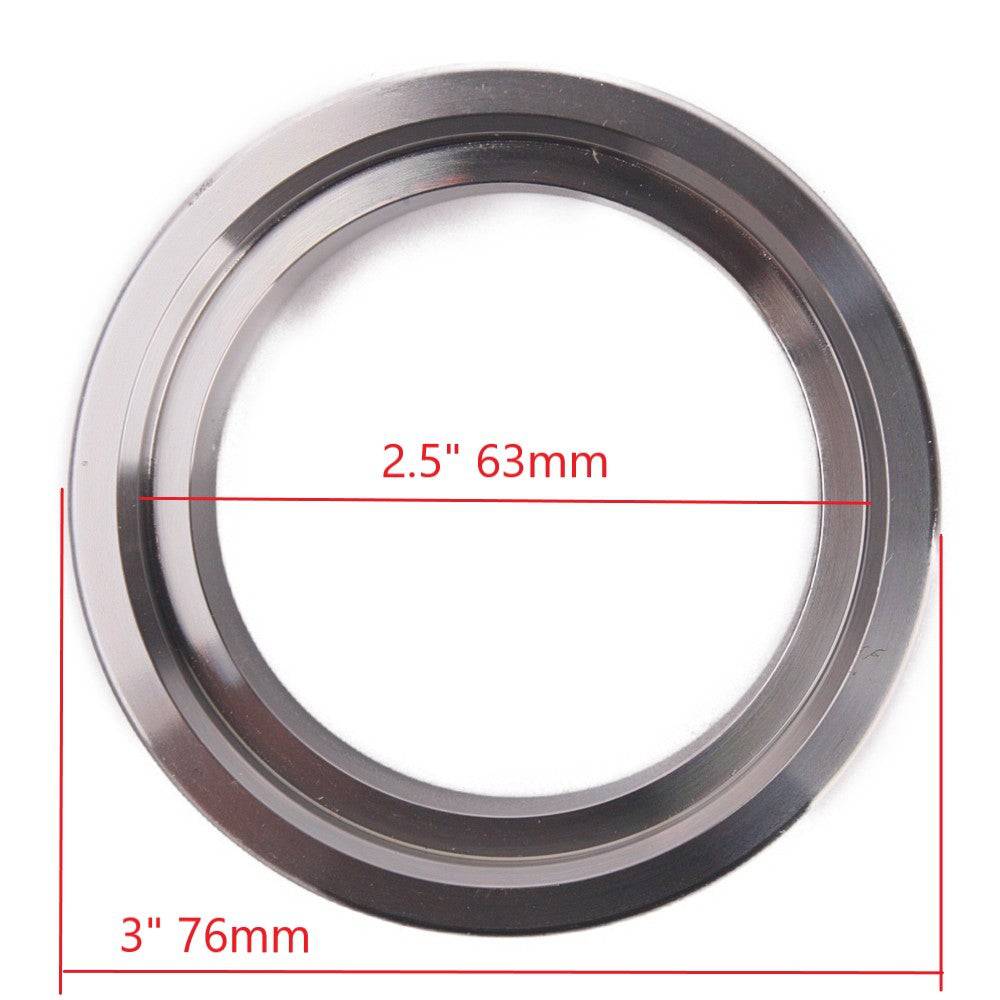

- 1 x Turbine inlet gasket and v-band outlet adapter
- 1 x Balance Report with Anti-Counterfeit Tag

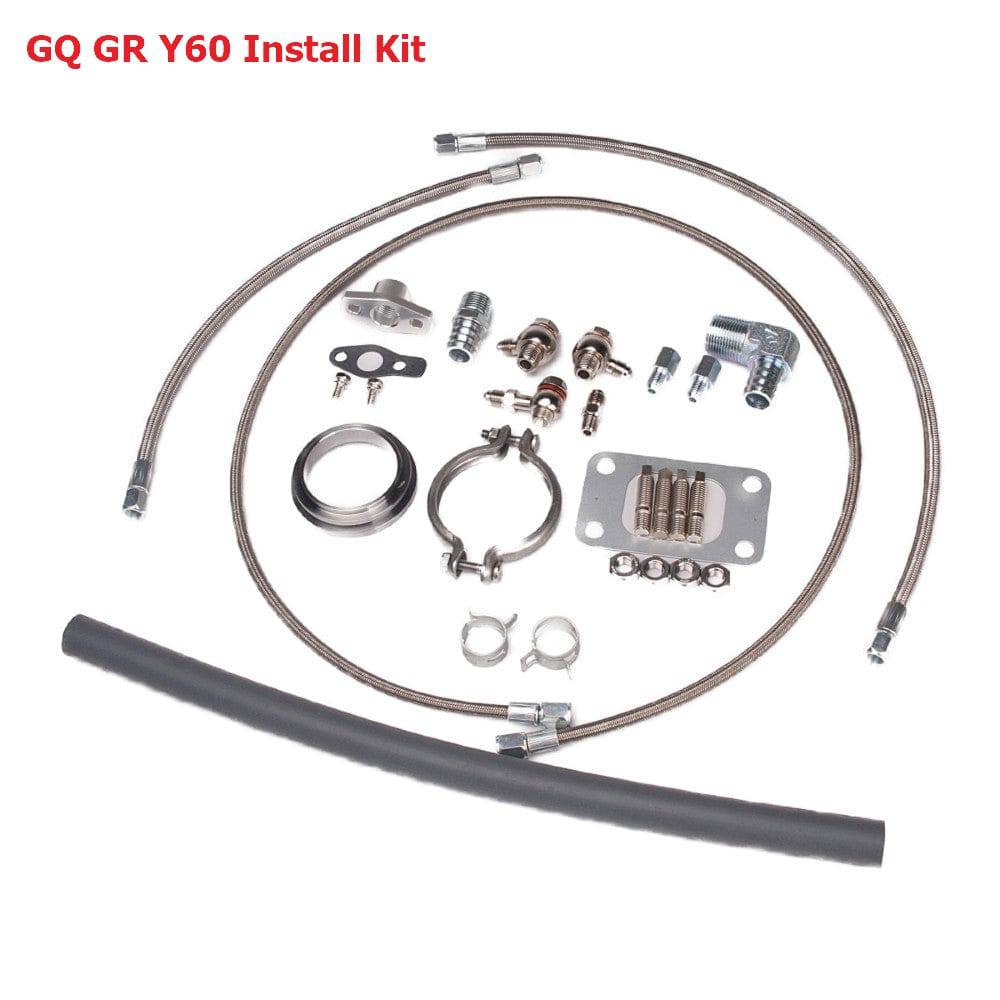

GR GQ Y60 Install Kit Instruction

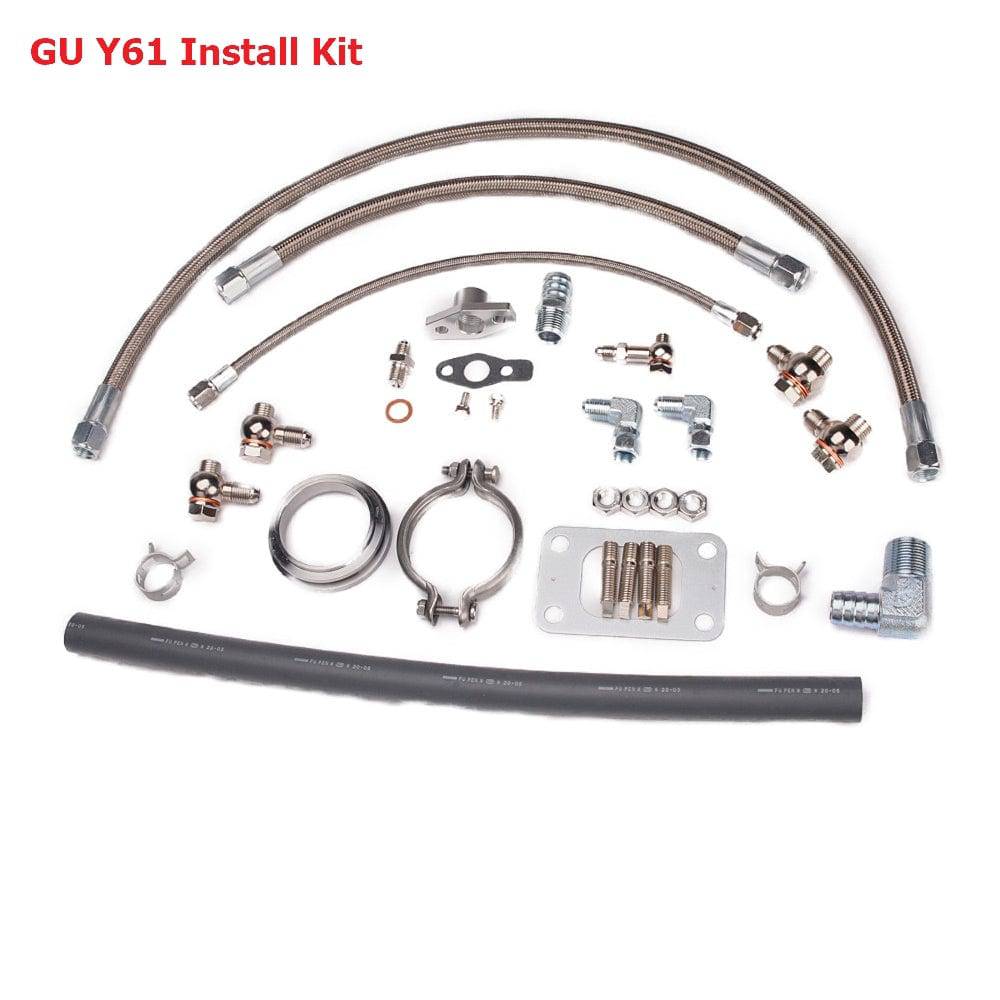

GU Y61 Install Kit Instruction
Situation
- Brand New
- Full balance from SCHENK MBRS 110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
Shipping & delivery
Ships direct from Kinugawa Turbo Systems via DHL Express, with import duties and taxes already paid. Each turbo is built and balanced to order (3-5 working days), so allow about 7-9 days for delivery Australia-wide.
Not sure which turbo suits your build, or need a different actuator pressure? Get in touch with the FlexAppeal4x4 team before you order and we'll help you pick the right one.
