KINUGAWA

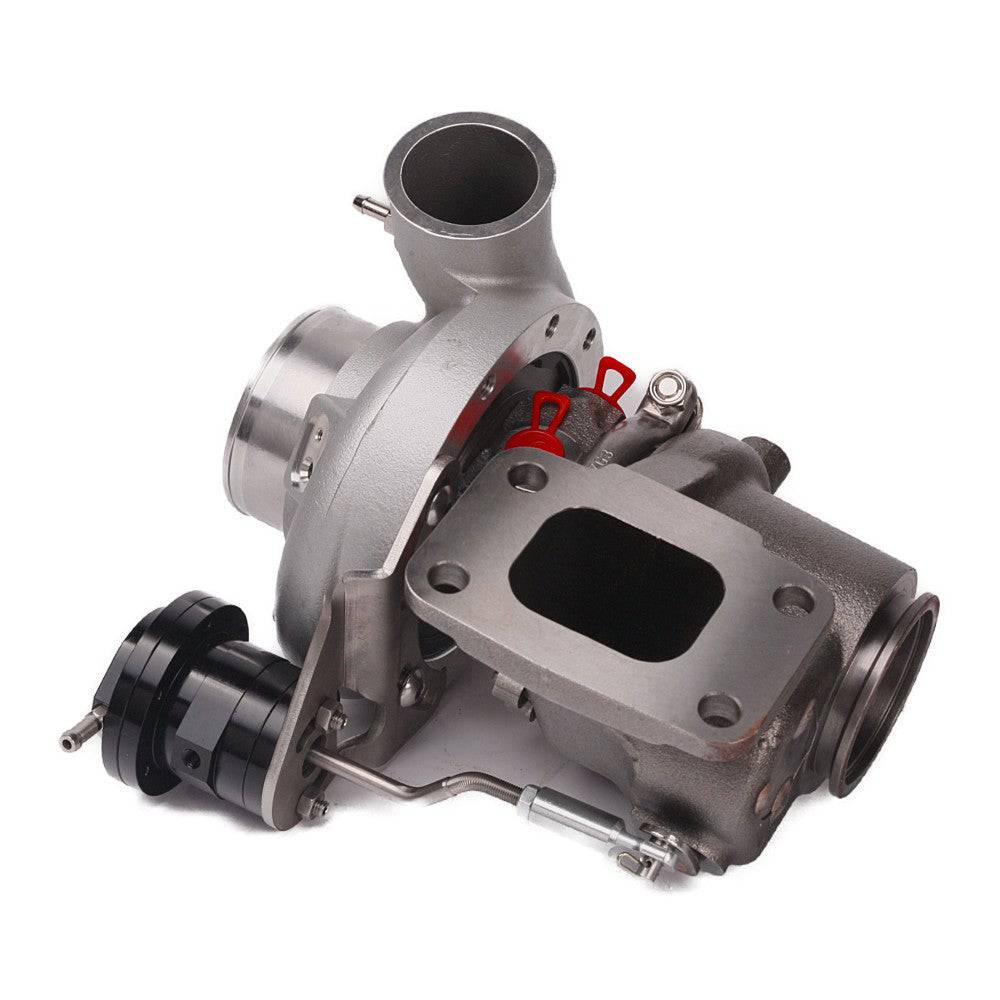

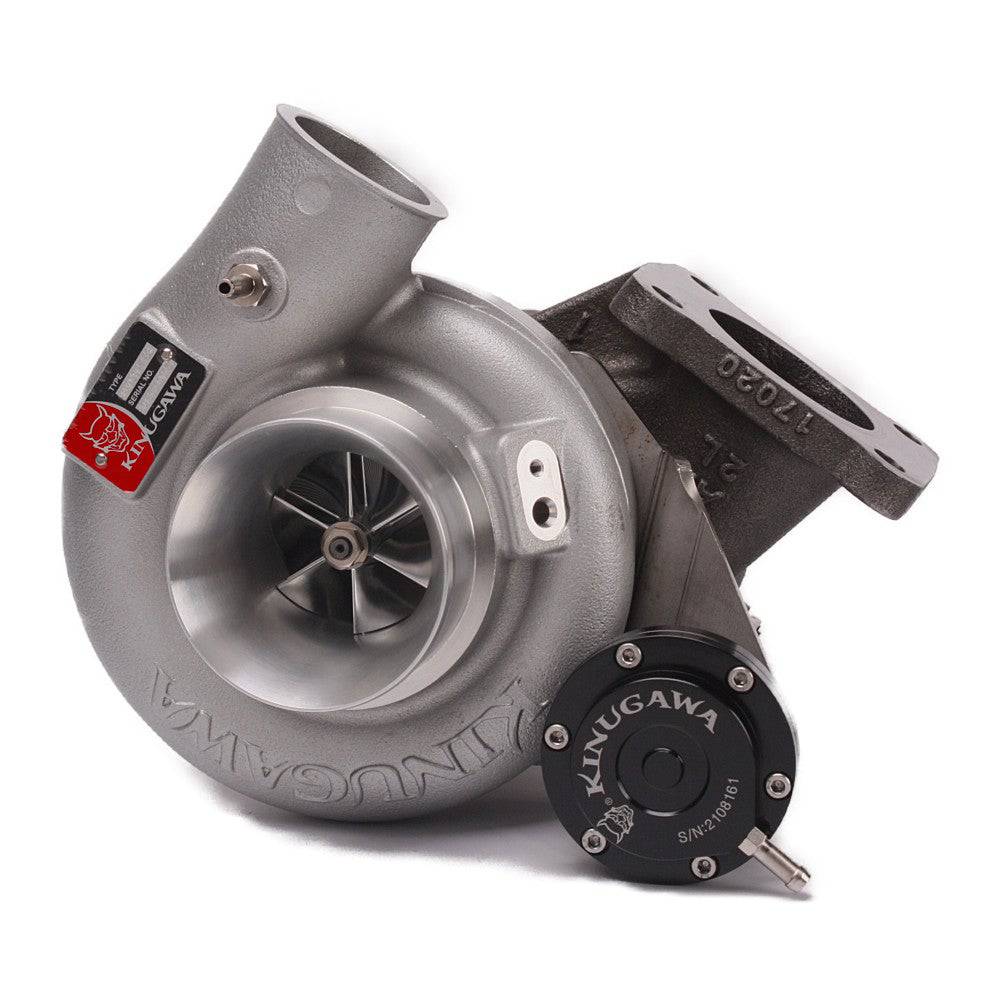

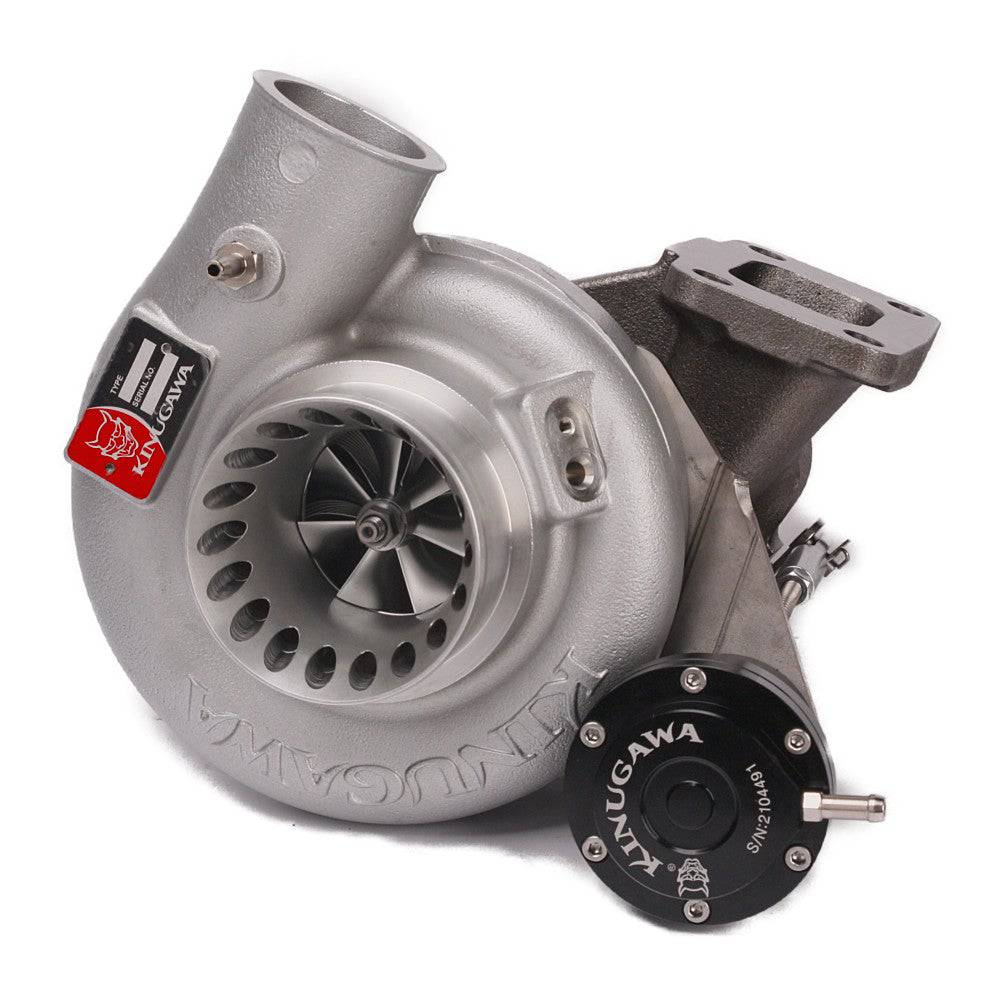

Kinugawa Turbo Ball Bearing 3" TD05H-16G 6cm T3 2.5" V-Band for Toyota Land Cruiser 1HZ 75 79 80 100 105
Regular price
$1,889.00 AUD
Regular price
Sale price
$1,889.00 AUD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Application
- Kinugawa TOYOTA 1HZ 4.2L Diesel 180HP Limited
- 75/78/79/80/100 series with 6cm T3 V-Band Turbine housing, You need an exhaust manifold with a T3 flange to install this turbocharger on a 1HZ Engine.
- Feature: The A/R 6cm turbine housing provides the ultimate spool time than the CT26 17201-17010 and 17201-17040 turbo with A/R 8cm.
- Kinugawa TOYOTA 1HZ 4.2L Diesel 180HP Limited
- 75/78/79/80/100 series with 6cm T3 V-Band Turbine housing, You need an exhaust manifold with a T3 flange to install this turbocharger on a 1HZ Engine.
- Feature: The A/R 6cm turbine housing provides the ultimate spool time than the CT26 17201-17010 and 17201-17040 turbo with A/R 8cm.
The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), representing the potential flywheel power. This product's Performance results depend highly on your vehicle’s modifications and tuning/calibration.
CHRA
- TD05H-16G
Wheels Spec
- Compressor wheel: 48.3 / 68.0 mm (The 6+6 blades are better for low-end torque, and the 11+0 type is for top-end speed)
- Turbine wheel: 56.0 / 49.2 mm
Compressor Housing
- Nozzle area: AR.60
- Inlet: 3"
- Outlet: 2"
- Inlet: 3"
- Outlet: 2"

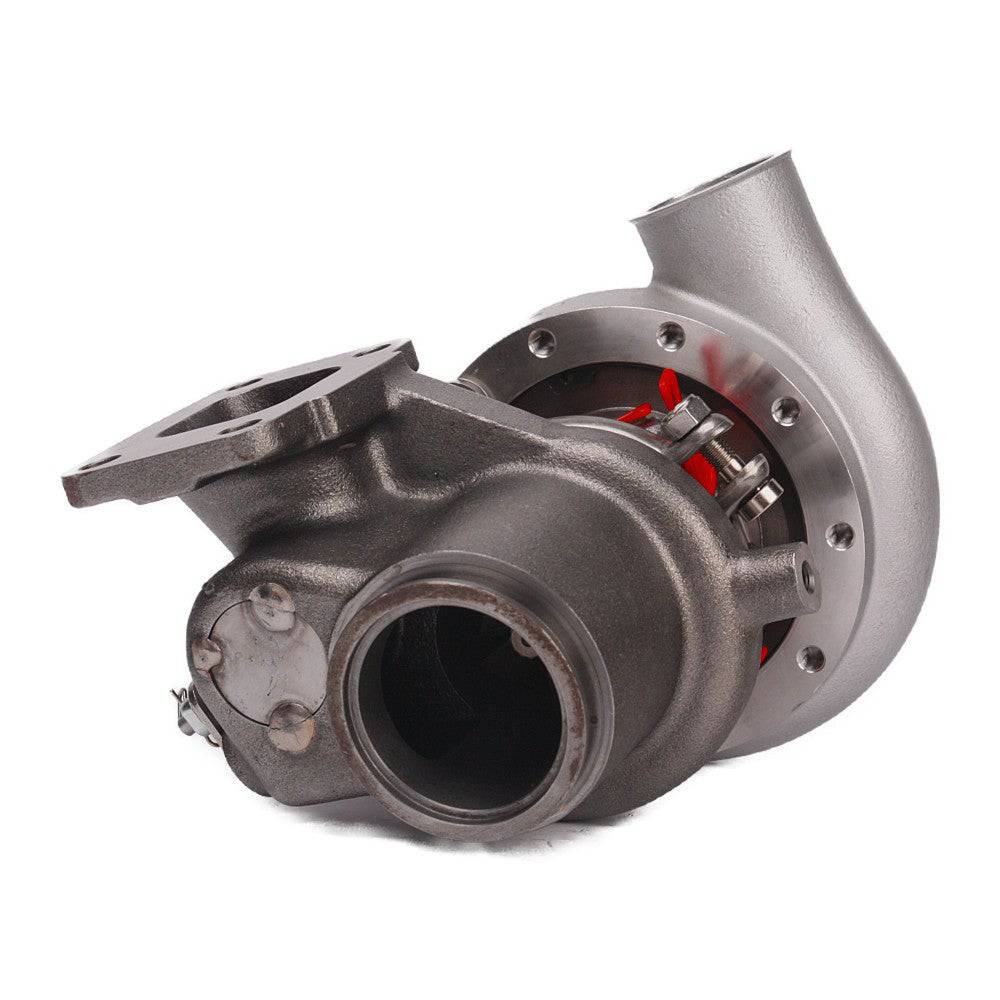

Turbines Housing
- Nozzle area: 6cm / AR.41
- Inlet: T3
- Outlet: 2.5" V-band
- Wastegate: internal gated
- Inlet: T3
- Outlet: 2.5" V-band
- Wastegate: internal gated
Bearing Type
- STS Advanced (Dual Ceramic Ball Bearing)
Cooling Type
- Oil and water cooling
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.

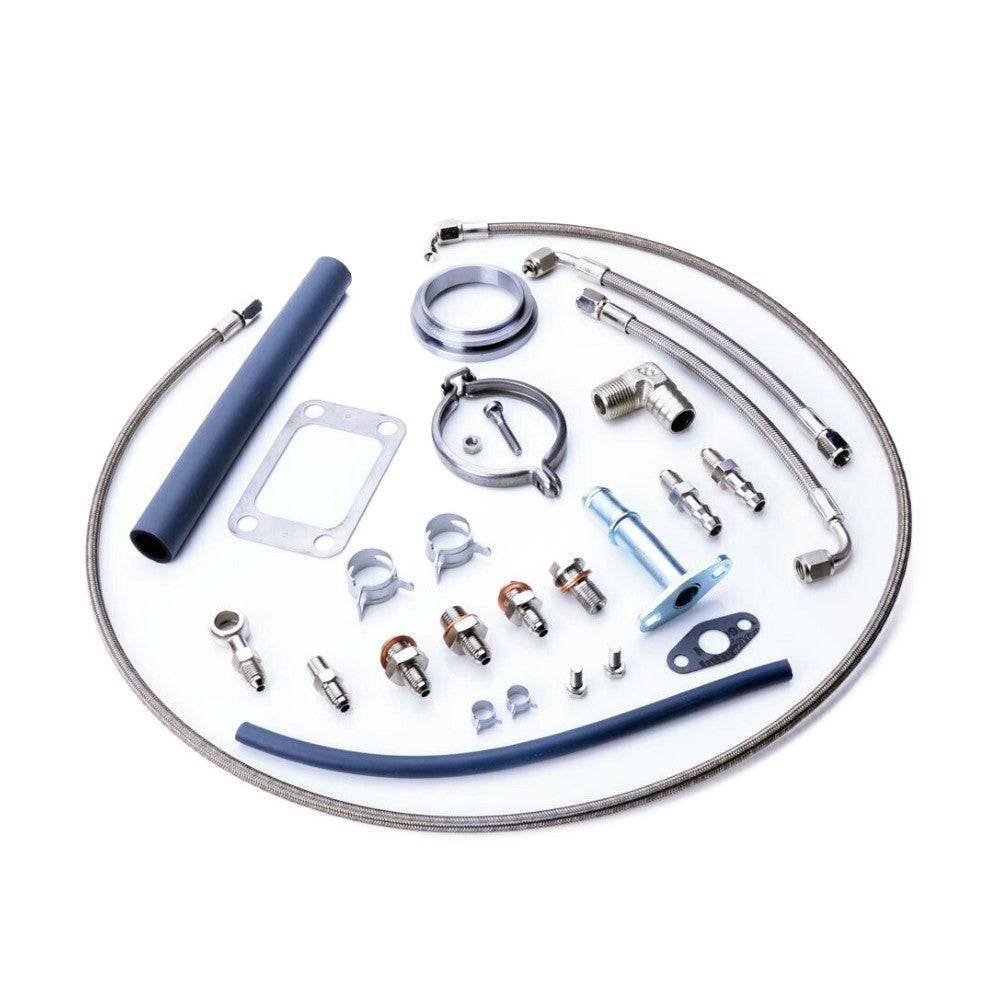

The Set Includes
- 1 x Turbocharger
- 1 x Turbocharger
- 1 x Oil supply set
- 1 x water coolant and return set
- 1 x T3 gasket

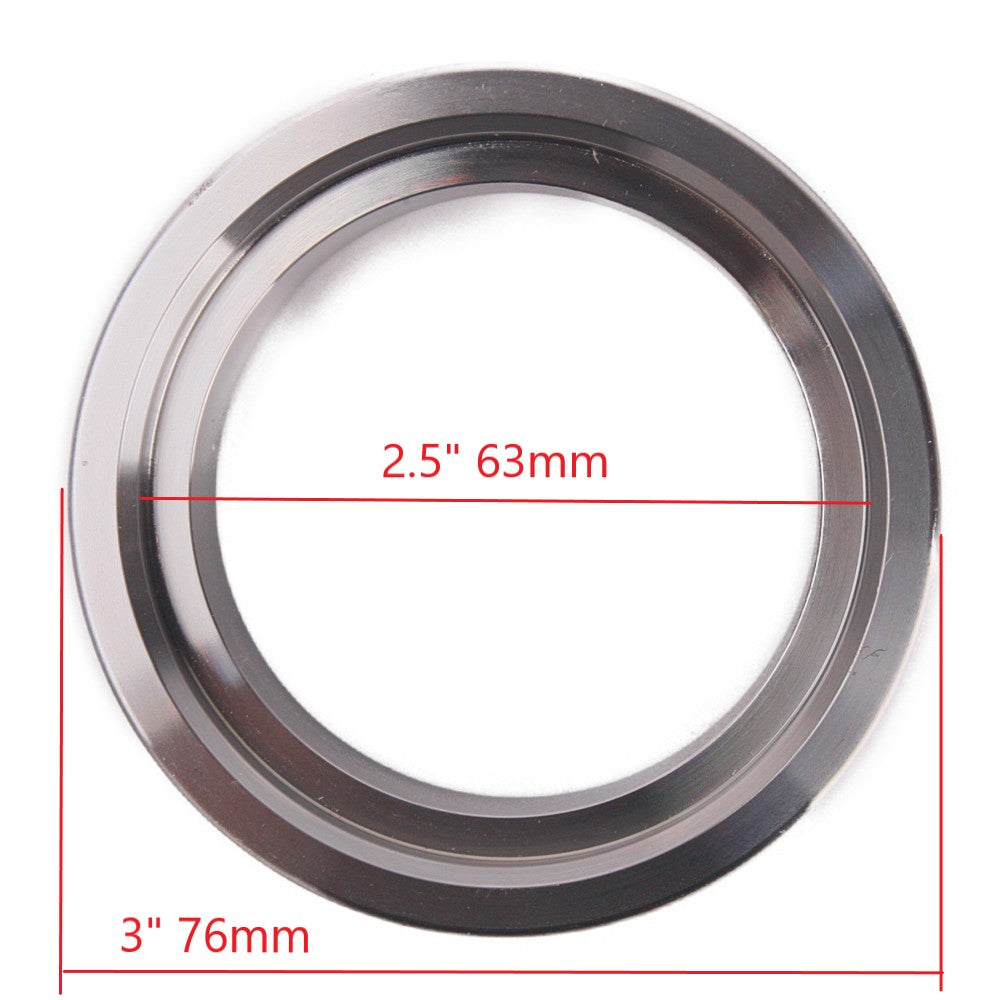

- 1 x V-Clamp and V-Band Socket Adapter Kit
- 1 x Balance Report with Anti-Counterfeit Tag↗
Situation
- Brand New
- Full balance from Schenk MBRS 950110 Germany
Provider
-Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.Shipping & delivery
Ships direct from Kinugawa Turbo Systems via DHL Express, with import duties and taxes already paid. Each turbo is built and balanced to order (3-5 working days), so allow about 7-9 days for delivery Australia-wide.
Not sure which turbo suits your build, or need a different actuator pressure? Get in touch with the FlexAppeal4x4 team before you order and we'll help you pick the right one.
