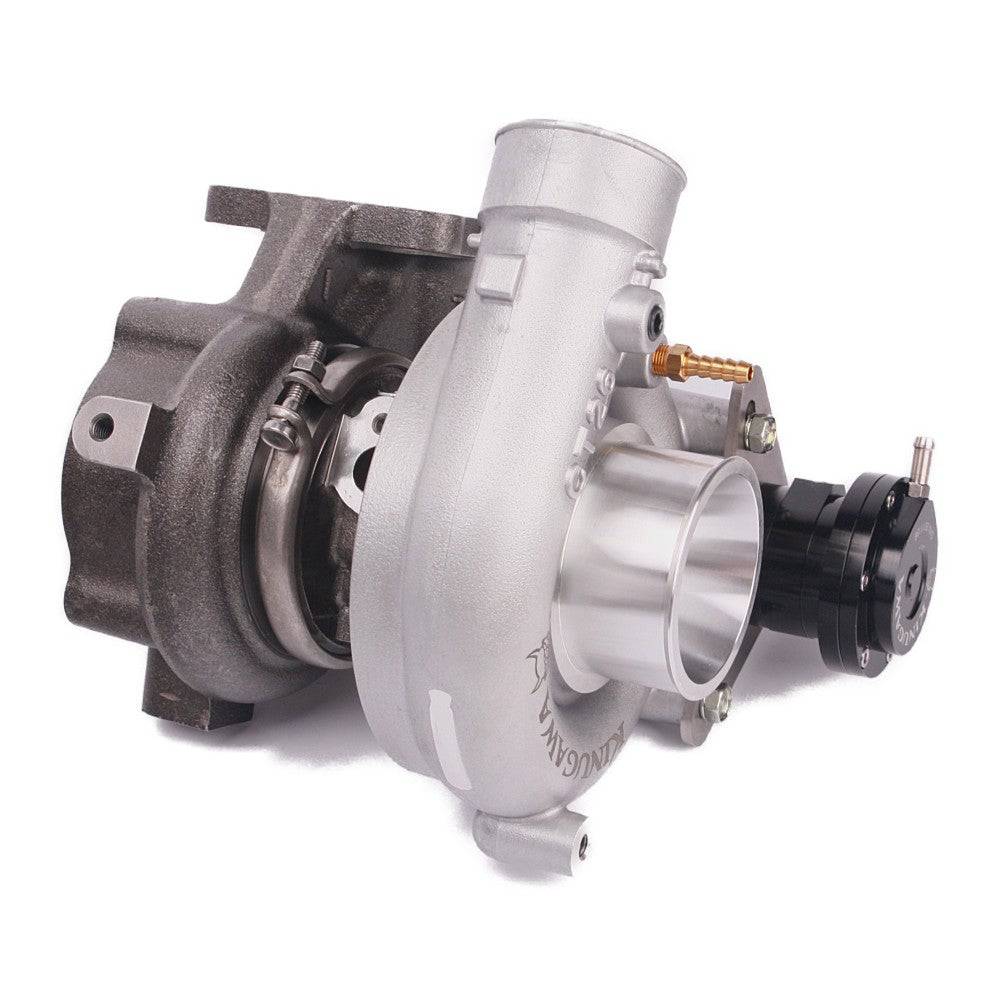

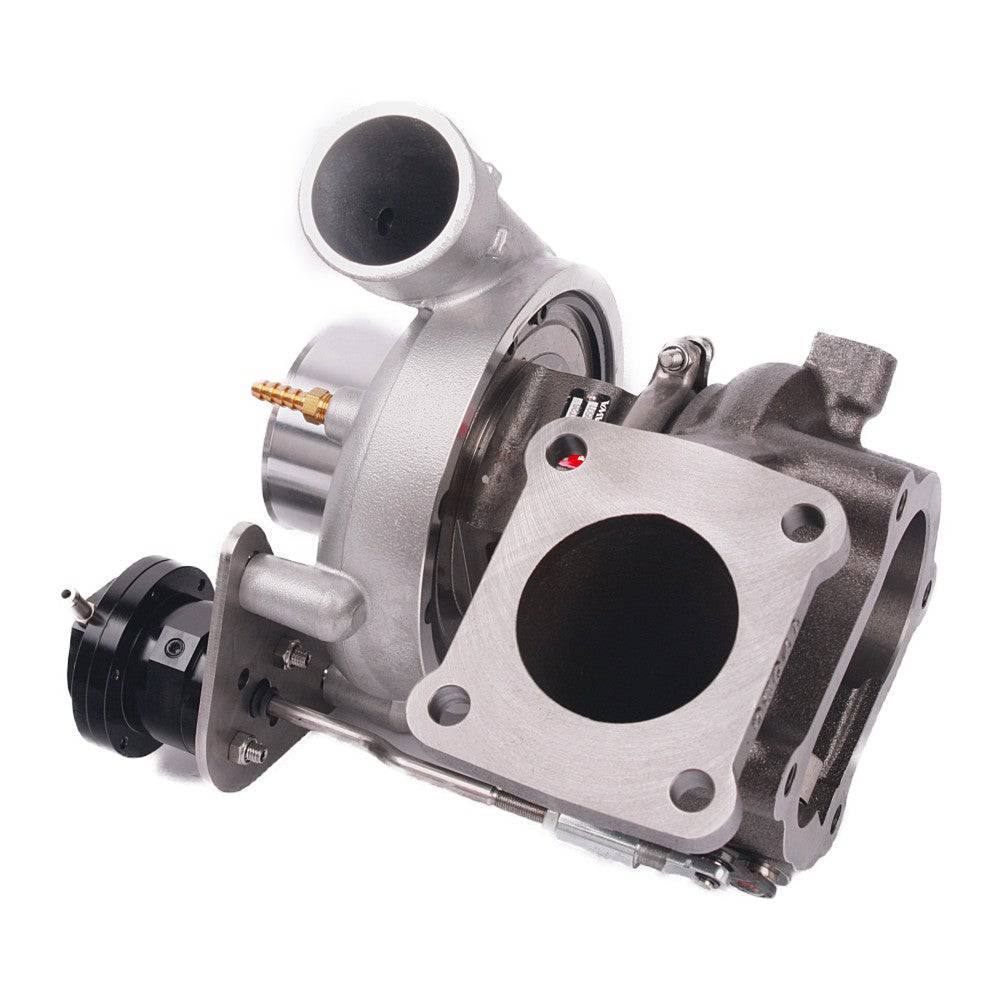

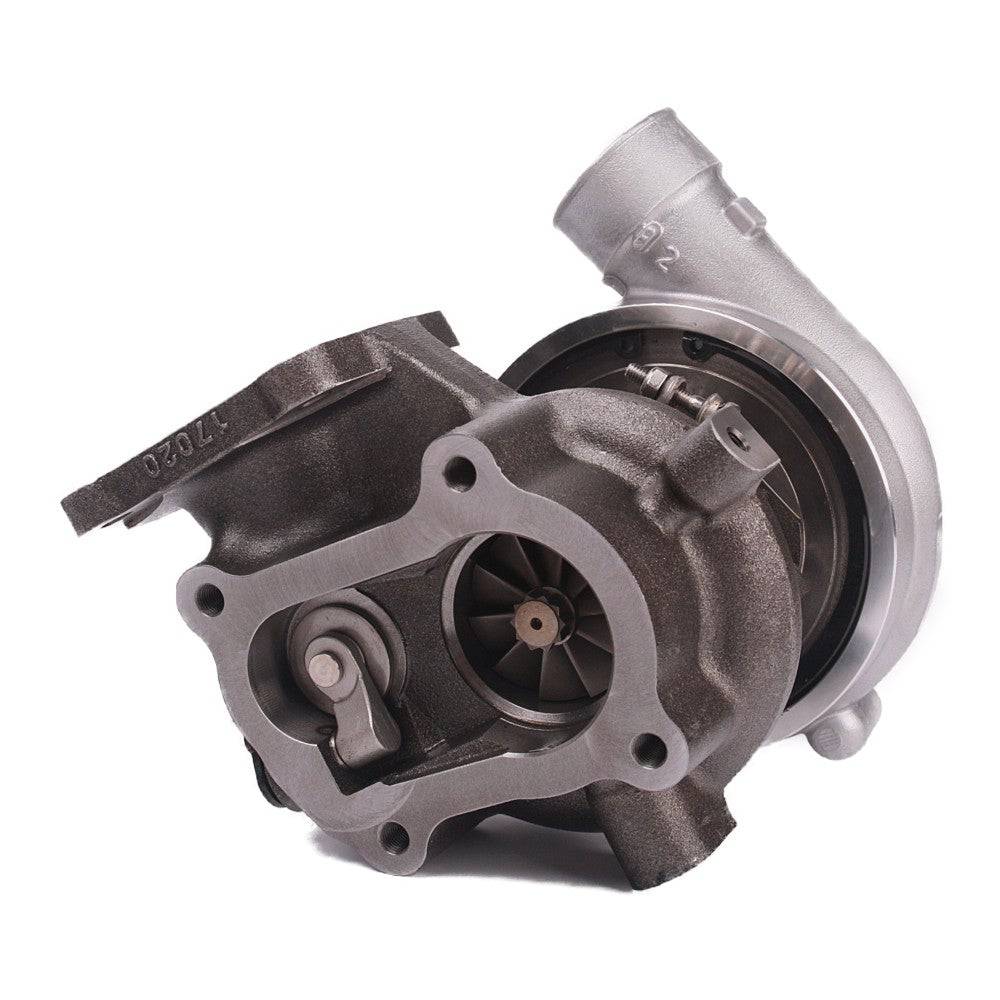

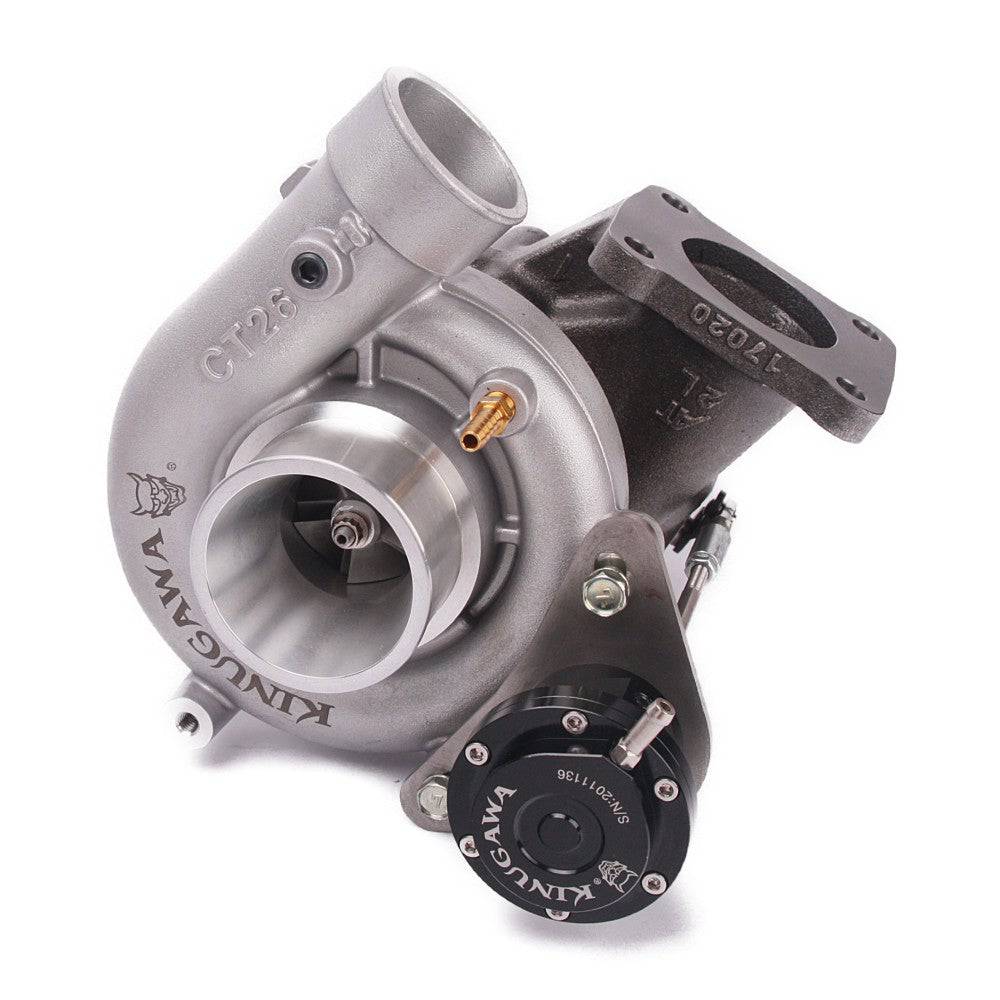

Kinugawa Turbo CT26 Garrett 60-1 7cm for Toyota Land Cruiser 1HZ 4.2L 80 Series Bolt-on

Application
- 75/78/79/80/100/105 series

Wheels spec
- Compressor wheel: 60 / 76 mm (Garrett 60-1 Wheel 7+7 Cast Type) (Inducer 45.9mm / Exducer 64.89mm is CT15B Stock Size)

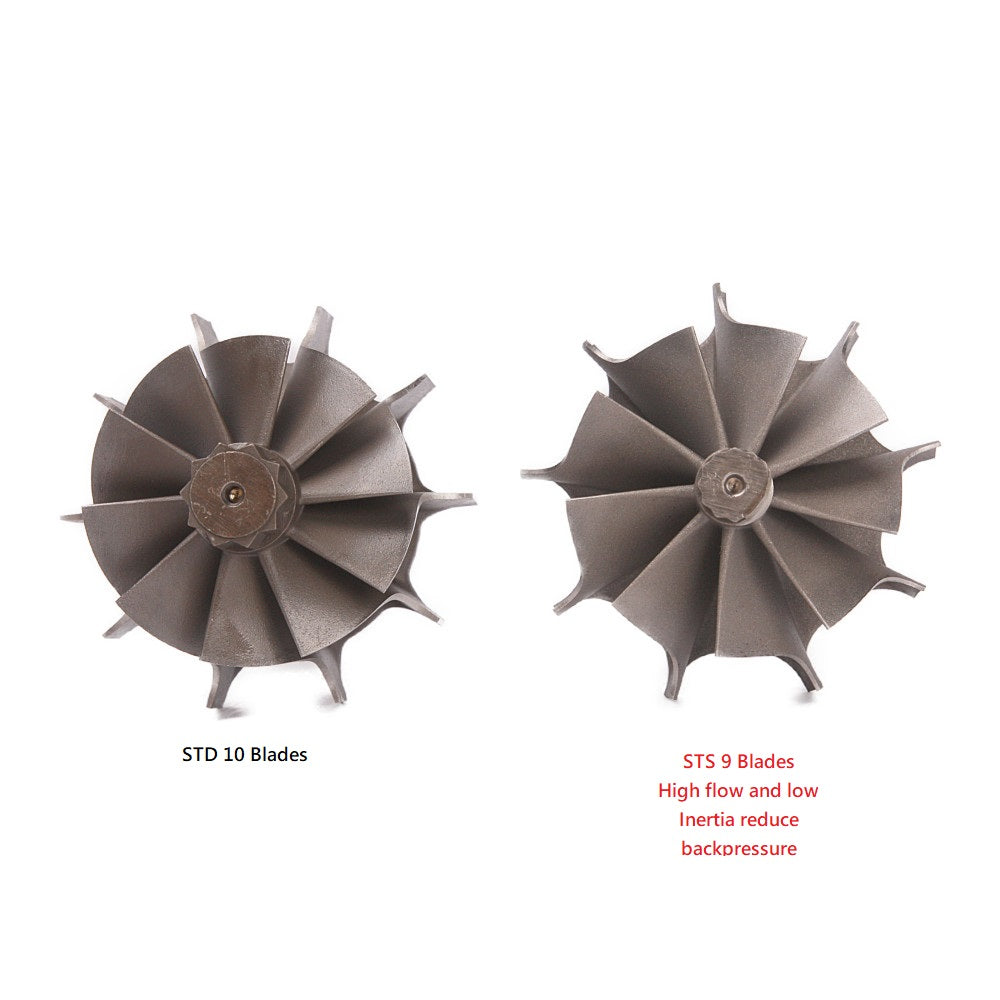

- Turbine Wheel: 51.9 / 67.9 mm (2 types offered: STD, STS.)

Compressor Housing
- CT26 bolt-on stock type

Turbine Housing
- Nozzle area: 7cm / AR.49 (faster spool than the stock 8cm)
- Inlet: Toyota CT26 4-bolt
- Outlet: Toyota CT26 4-bolt
- Wastegate: internal gated

Bearing Type
- Journal Bearing with 360-degree performance thrust bearing kit.

Cooling Type
- Oil and water cooling

Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.

KIT INCLUDES

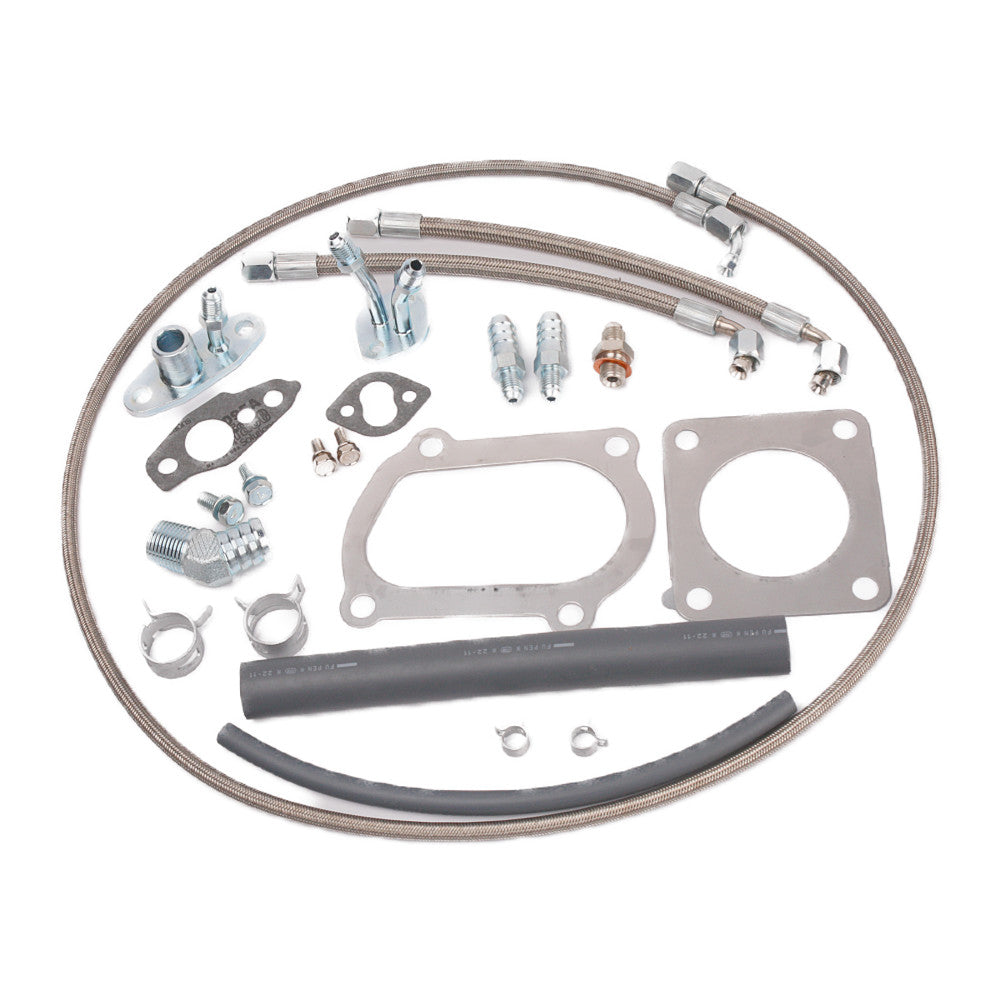

- 1 x Tubo oil and water install kit.
- 1 x Turbocharger
- 1 x Kinugawa balance report with anti-counterfeit tag↗

Situation
- Brand New

Provider
- Kinugawa Turbo Systems

Warranty

Shipping & delivery

Ships direct from Kinugawa Turbo Systems via DHL Express, with import duties and taxes already paid. Each turbo is built and balanced to order (3-5 working days), so allow about 7-9 days for delivery Australia-wide.

Not sure which turbo suits your build, or need a different actuator pressure? Get in touch with the FlexAppeal4x4 team before you order and we'll help you pick the right one.
