KINUGAWA
Kinugawa Turbo Super Core 3" TD05H-16G for Nissan Patrol TD42 TD05 Series Oil-Cooled
Regular price
$869.00 AUD
Regular price
Sale price
$869.00 AUD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Application
- Fits Kinugawa TD05 series turbochargers for Nissan TD42 Patrol Safari GR GQ Y60, GU Y61 TD42T
- Fits Kinugawa TD05 series turbochargers for Nissan TD42 Patrol Safari GR GQ Y60, GU Y61 TD42T

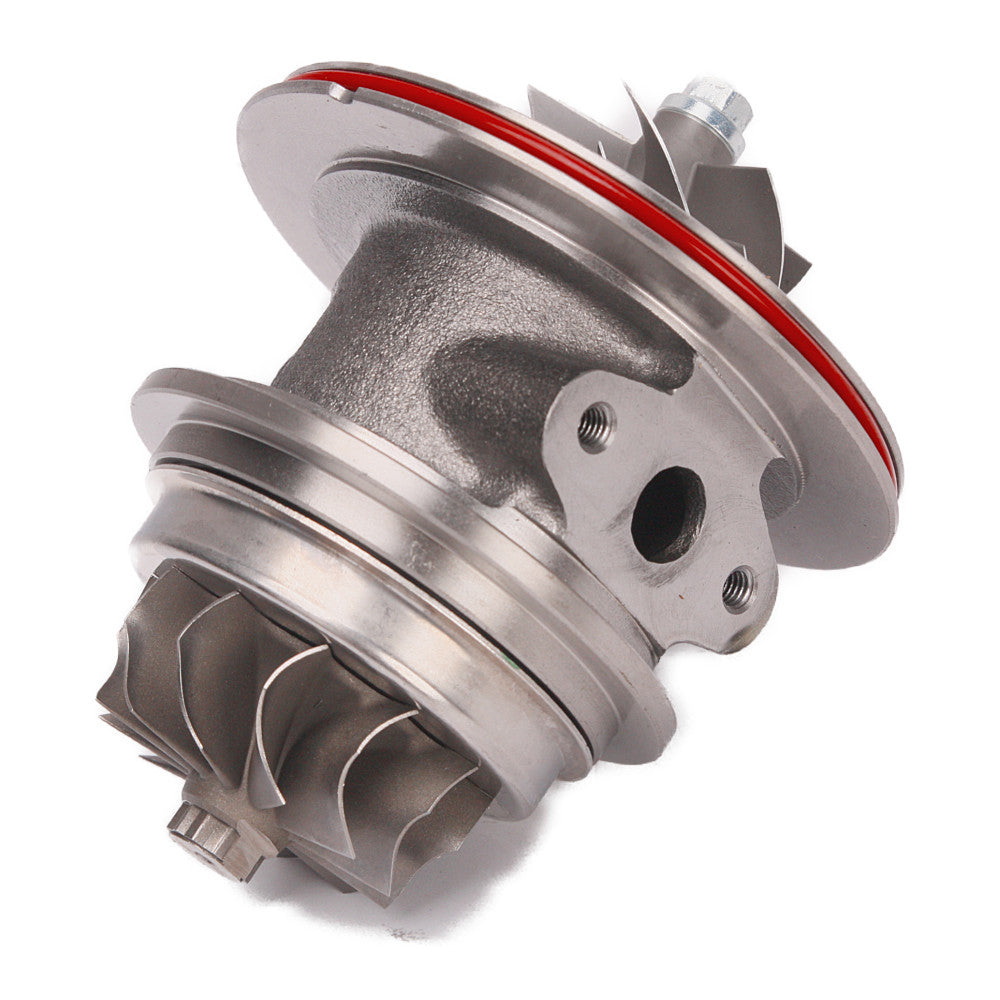

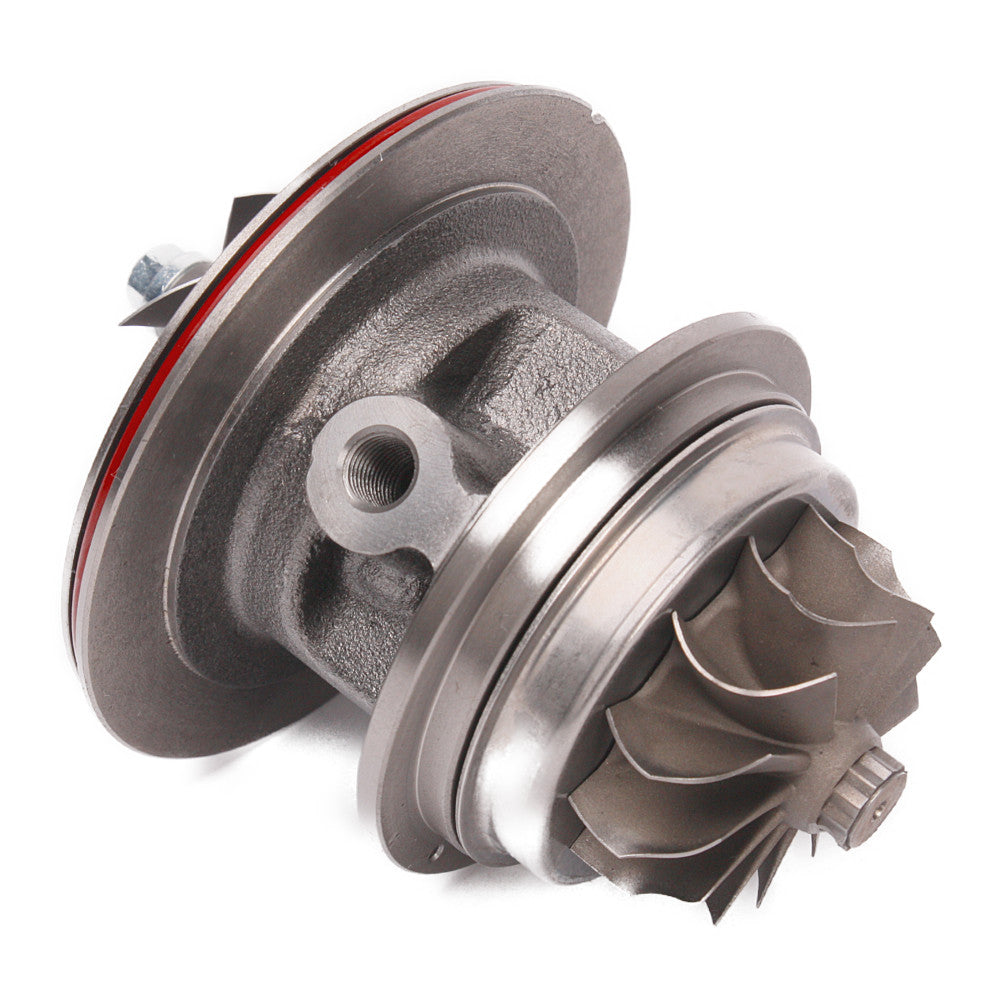

CHRA Size
- TD05H-16G
Wheels Spec
- Compressor wheel: 48.3 / 68.0 mm (The 6+6 blades are better for low-end torque and the 11+0 type is for top-end speed)
- Turbine wheel: 56 / 49.2 mm (3 types available: STD, STS, STS55.

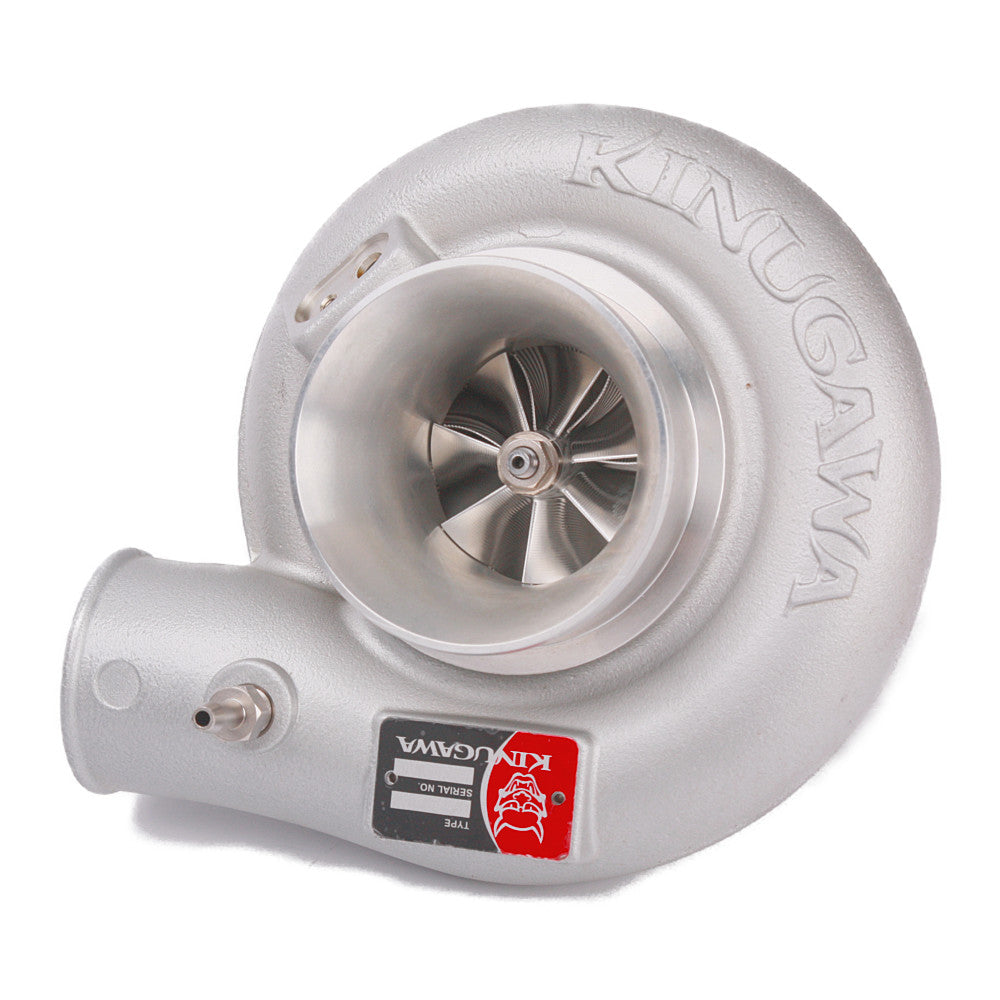

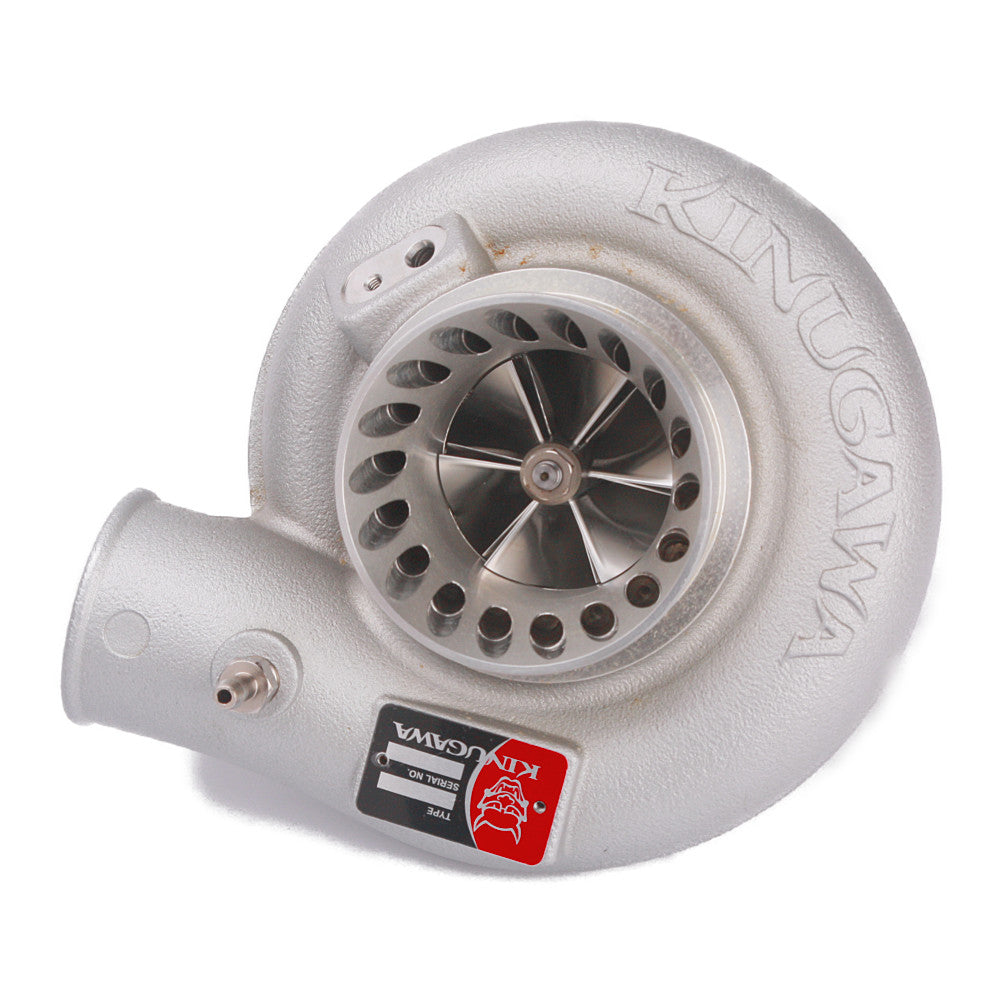

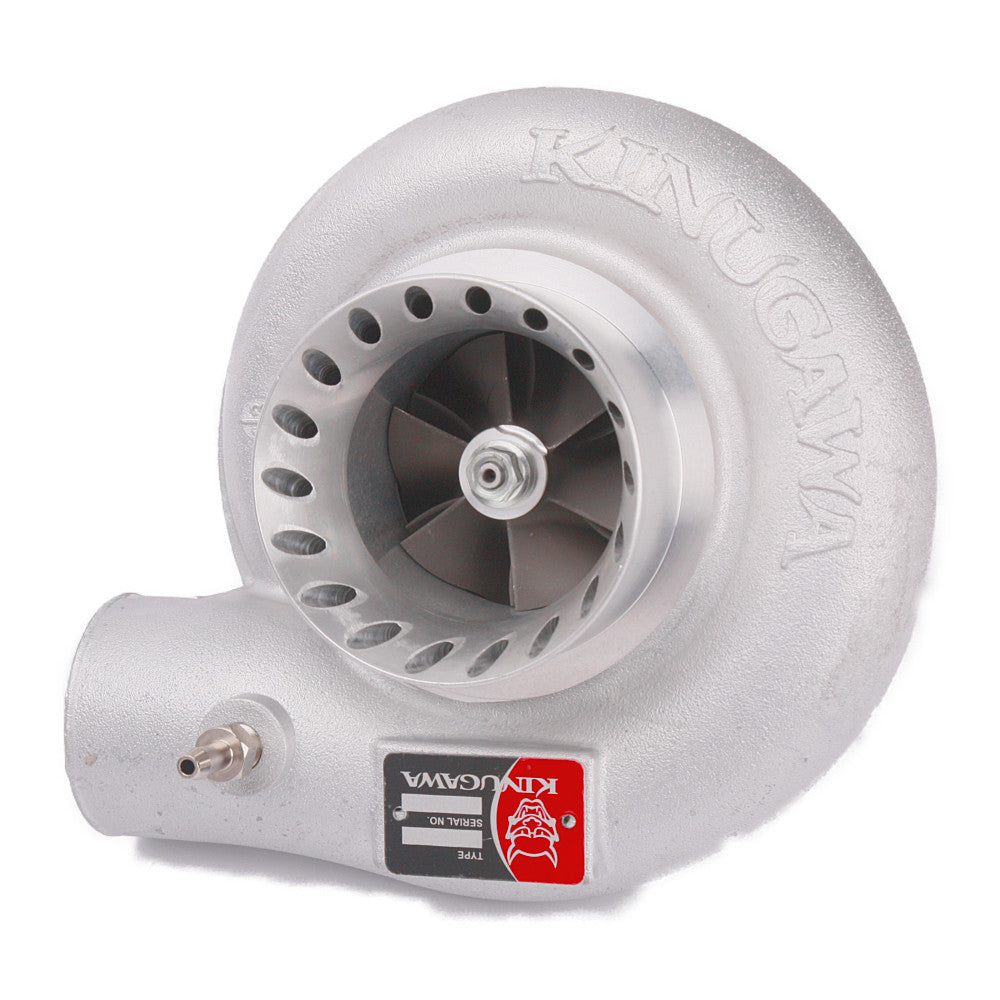

Compressor Housing
- Nozzle area: AR.60
- Inlet: 3"
- Inlet: 3"
Bearing Type
- Journal bearing system with 360-degree performance thrust bearing kit
Cooling Type
- Oil cooling
The Set Includes
- 1 x Super Core (CHRA + Compressor Housing)
(3A #408-02031-014 / 3NA #408-02031-013 + #417-04002-001)
(3A #408-02031-014 / 3NA #408-02031-013 + #417-04002-001)
- 1 x Balance Report with Anti-Counterfeit Tag
Situation
- Brand New
- Full balance from Schenk MBRS 950110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
-No
Warranty
-No
Shipping & delivery
Ships direct from Kinugawa Turbo Systems via DHL Express, with import duties and taxes already paid. Each turbo is built and balanced to order (3-5 working days), so allow about 7-9 days for delivery Australia-wide.
Not sure which turbo suits your build, or need a different actuator pressure? Get in touch with the FlexAppeal4x4 team before you order and we'll help you pick the right one.
