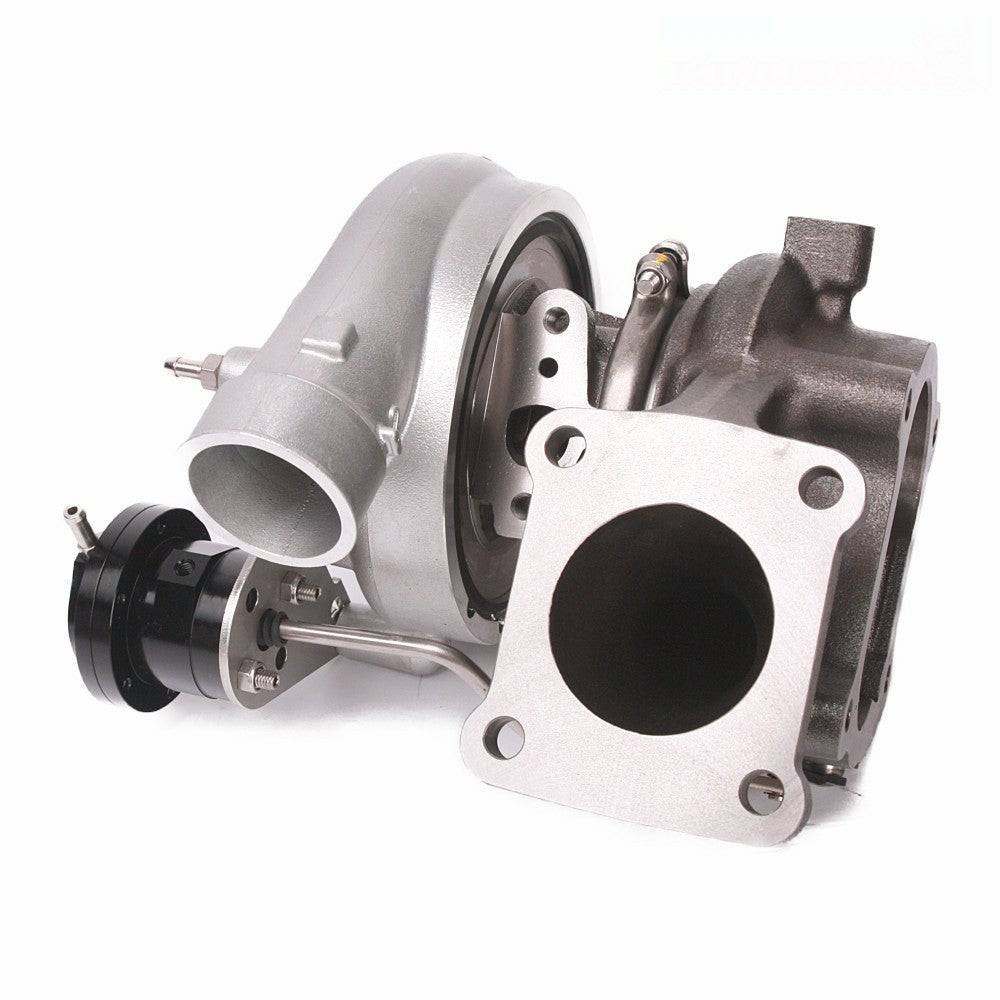

Kinugawa Turbo Upgrade CT26 for Toyota 2H Land Cruiser HJ47 HJ60 HJ75 60 70 Series

Application

- TOYOTA Land Cruiser 2H 4.0L Diesel Engine HJ47 with CT26 Turbo
- TOYOTA Land Cruiser 2H 4.0L Diesel Engine HJ60 with CT26 Turbo
- TOYOTA Land Cruiser 2H 4.0L Diesel Engine HJ75 with CT26 Turbo

- Recommend replacing the stock manifold with the 12HT type from NA to Turbo.

- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.

Wheels Spec

- Compressor wheel (2 Options): 45.9/65 mm (fits HDAutomotive 2H Turbo Kit/SKU: 2H-TURBOKIT-ARASHI) or 60.5/76 mm (Garrett 60-1 wheel)

- Turbine wheel: 51.9 / 67.9 mm (2 types offered: STD, STS. )

Compressor Housing
- Bolt-on stock type

Turbine Housing
- Nozzle area: 7cm / AR.49 (faster spool response than the stock 8cm)
- Inlet: Toyota CT26 4-bolt
- Outlet: Toyota CT26 4-bolt
- Wastegate: internal gated
- Bolt-on stock type

Bearing Type

- Journal Bearing with 360-degree thrust bearing kit

Cooling Type

- Oil and water cooling

Actuator Pressure

- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.

The Set Includes

- 1 x Turbocharger

- 1 x Turbo install kit.

- 1 x Balance Report with an anti-counterfeit tag

Situation code

- Brand New

Provider

- Kinugawa Turbo Systems

Warranty

- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA will cover you no matter the issue.

Shipping & delivery

Ships direct from Kinugawa Turbo Systems via DHL Express, with import duties and taxes already paid. Each turbo is built and balanced to order (3-5 working days), so allow about 7-9 days for delivery Australia-wide.

Not sure which turbo suits your build, or need a different actuator pressure? Get in touch with the FlexAppeal4x4 team before you order and we'll help you pick the right one.
